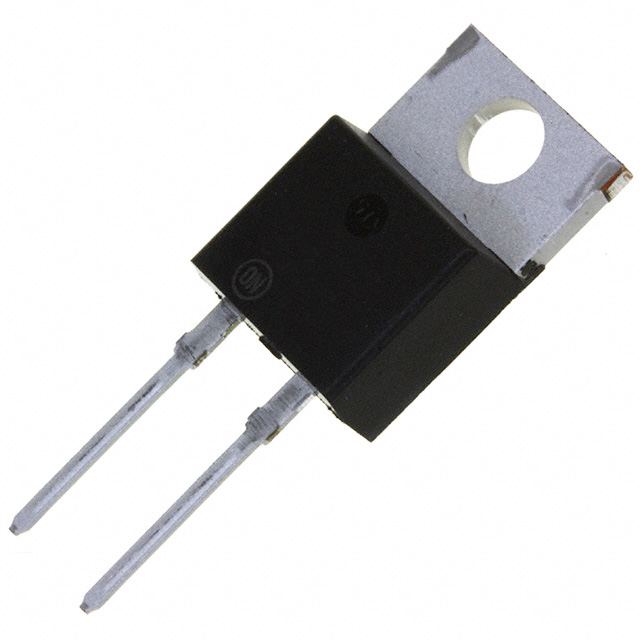

UD1006FR-H

Description：DIODE STANDARD 600V 10A
Series：-
Mfr：onsemi
Package：Tube

SKU:4fdf11f14546 Category: Single Diodes Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UD1006FR-H is listed in the Single Diodes range at ChipApex. The manufacturer field lists onsemi. Its product description is DIODE STANDARD 600V 10A. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for UD1006FR-H

Description：DIODE STANDARD 600V 10A
Series：-
Mfr：onsemi
Package：Tube
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：10A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 10 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：150 ns
Current - Reverse Leakage @ Vr：100 µA @ 600 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：TO-220-2
Supplier Device Package：-
Operating Temperature - Junction：150°C (Max)
Grade：-
Qualification：-

Single Diodes datasheet and documents for UD1006FR-H

UD1006FR-H

Single Diodes Overview

The UD1006FR-H is a planar ultrafast rectifier manufactured by onsemi, designed for high-efficiency switching applications. It features a peak repetitive reverse voltage of 600 V and an average forward current rating of 10 A in a TO-220-2 FP package. The device exhibits a low forward voltage of 1.3 V at 10 A and a typical reverse recovery time of 60 ns under specified test conditions. It supports a maximum surge current of 120 A and operates within a junction temperature range from -55 °C to +150 °C.

Single Diodes Feature Summary

Planar ultrafast rectifier technology optimized for low forward voltage characteristics
Halogen-free compliance ensuring adherence to environmental material standards

Single Diodes Applications

High-frequency AC/DC converters
Free-wheeling diodes in power supplies
Reverse polarity protection circuits

Single Diodes Procurement Notes

Verify the specific datasheet revision and RoHS compliance documentation prior to integration. Confirm that the TO-220-2 FP package dimensions match the target PCB footprint requirements. Ensure thermal management strategies account for the specified maximum junction temperature limits during operation.

Single Diodes Selection Notes

Select this component when low forward voltage drop is critical for efficiency in 600V rated systems. The ultrafast recovery characteristic makes it suitable for high-frequency switching environments where standard rectifiers would exhibit excessive losses or thermal stress due to slow reverse recovery times.

Single Diodes Part Context

This part belongs to the UD1006FR series of small signal switching diodes produced by onsemi. It is categorized as a single configuration diode within the broader family of discrete semiconductor products designed for general-purpose and specialized power conversion tasks across industrial and consumer electronics markets.
