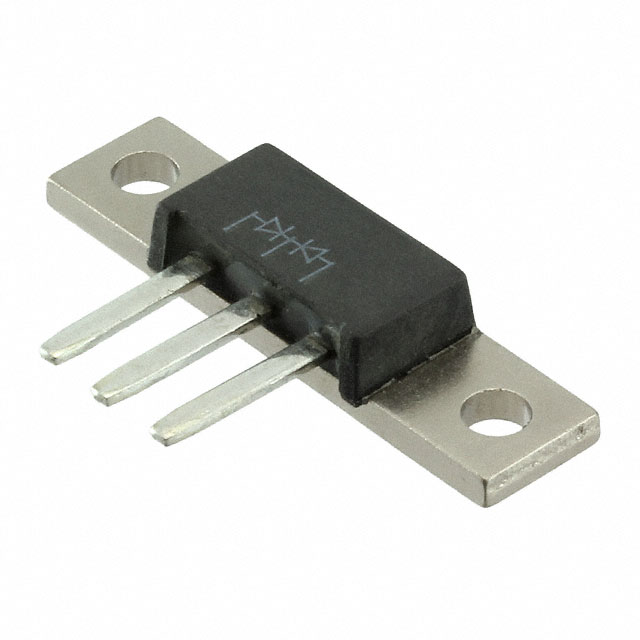

UFT7150 is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Microsemi Corporation. Its product description is DIODE MODULE GP 500V 35A MODULE. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for UFT7150
- Description：DIODE MODULE GP 500V 35A MODULE
- Series：-
- Mfr：Microsemi Corporation
- Package：Bulk
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：500 V
- Current - Average Rectified (Io) (per Diode)：35A
- Voltage - Forward (Vf) (Max) @ If：1.2 V @ 35 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：60 ns
- Current - Reverse Leakage @ Vr：25 µA @ 500 V
- Operating Temperature - Junction：-
- Mounting Type：Screw Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for UFT7150
Diode Arrays Overview
The UFT7150 is a silicon rectifier diode module designed for high-power applications. It features a single-phase, two-element configuration housed in a robust package. The device supports a repetitive peak reverse voltage of 400V and a continuous forward current of 35A. Key electrical characteristics include an ultrafast recovery time and low forward voltage drop, ensuring efficient power conversion. The component operates within a wide temperature range, suitable for demanding industrial environments.
Diode Arrays Feature Summary
- Ultrafast recovery performance for high-frequency switching applications
- High current handling capability with 35A continuous rating
- Robust construction in a standardized module package
Diode Arrays Applications
- Industrial motor drives
- Power supply rectification
- Inverter circuits
Diode Arrays Procurement Notes
Verify the specific suffix code to confirm exact electrical tolerances and packaging options. Confirm RoHS compliance status as indicated in the official datasheet. Ensure the procurement channel provides authentic Microsemi components to guarantee reliability. Check for any specific storage or handling requirements detailed in the manufacturer's documentation before ordering.
Diode Arrays Selection Notes
Select this component when a fast-recovery rectifier with moderate voltage blocking is required. The 400V rating suits lower voltage AC-DC conversion stages. Consider the thermal management needs associated with the 35A current rating. Evaluate the package type against available board space and mounting constraints.
Diode Arrays Part Context
This part belongs to the UFT series of ultrafast recovery modules from Microsemi. These modules are engineered for efficiency and speed in power electronics. The series typically includes variants with different voltage and current ratings to cover various application needs.
Diode Arrays Replacement Considerations
Consult official substitution lists for direct equivalents. Verify pin compatibility and thermal resistance values when considering alternative manufacturers.
