UMC4NTR

Overview

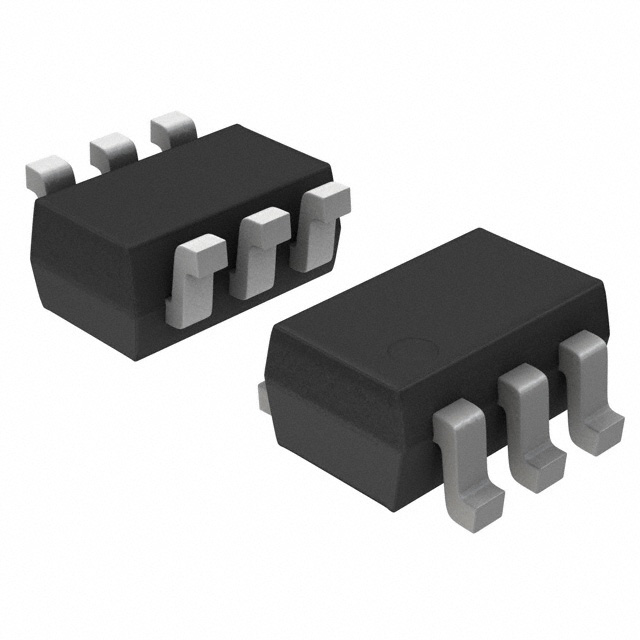

The UMC4NTR is a dual digital transistor from ROHM Semiconductor, integrating one NPN and one PNP pre-biased transistor within a single surface-mount package. This epitaxial planar silicon device combines the functionality of DTA114Y and DTC114E chips to reduce mounting costs and board area. It features built-in resistors for biasing, eliminating external components. The unit operates with a maximum collector-emitter voltage of 50V and continuous collector current of 100mA per channel. Designed for power management applications, it offers high DC current gain and low saturation voltage, suitable for switching circuits in compact electronic designs.

Feature Summary

• Integrates complementary NPN and PNP digital transistors with built-in biasing resistors into a single compact package.
• Reduces component count and PCB footprint by combining two discrete transistors into one surface-mount unit.
• Features epitaxial planar silicon construction for reliable switching performance in power management circuits.

Applications

• Power switch circuits requiring complementary NPN/PNP logic levels
• Digital interface buffering where space is constrained
• General-purpose switching applications in consumer electronics

Procurement Notes

Verify the specific suffix 'TR' indicates tape-and-reel packaging when ordering. Confirm RoHS compliance status through official datasheets or manufacturer declarations prior to integration. Ensure the selected package variant matches the intended PCB layout constraints. Check for any automotive grade alternatives if operating in harsh environments, as standard grades may have limitations.

Selection Notes

Select this component when a complementary pair of pre-biased transistors is required in a minimal footprint. Compare against discrete DTA114Y and DTC114E equivalents to assess space savings versus potential performance trade-offs. Consider the thermal dissipation capabilities relative to the total power budget of the application. Verify input resistance values meet the driving circuit requirements for both NPN and PNP channels.

Part Context

The UMC4NTR belongs to ROHM's series of dual digital transistors designed for cost-effective power management solutions. It serves as a consolidated alternative to using separate NPN and PNP devices, simplifying assembly processes. The product line emphasizes miniaturization and efficiency for modern portable and industrial electronic devices requiring reliable logical switching functions.

Replacement Considerations

Direct functional substitutes include the discrete combination of DTA114Y (P-channel) and DTC114E (N-channel). Other integrated dual digital transistors from various manufacturers may offer pin-compatible alternatives but require verification of electrical parameters such as hFE and Vce(sat).
