UNRF2AN00A

Overview

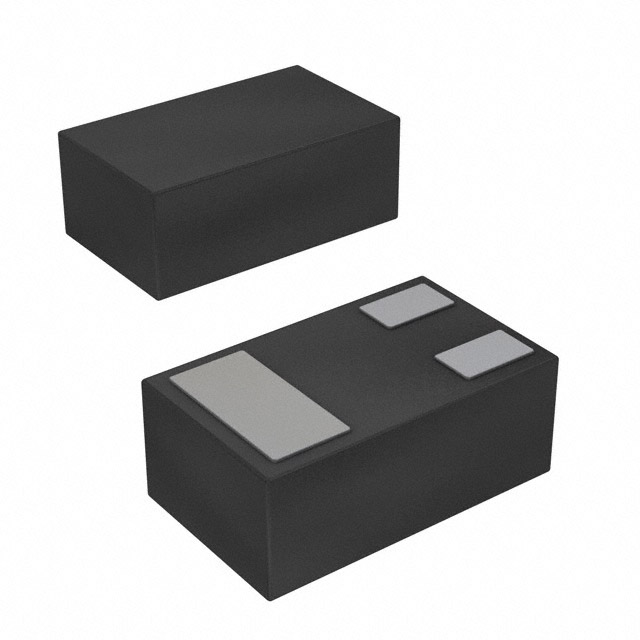

The UNRF2AN00A is a small signal NPN silicon epitaxial planar transistor manufactured by Panasonic Electronic Components. It features an integrated bias resistor with a ratio of 1, designed for digital circuit applications. The device operates with a maximum collector current of 0.08 A and a collector-emitter voltage rating of 50 V. It utilizes an ultraminiature leadless ML3-N2 package measuring 0.60 mm x 1.0 mm with a height of 0.39 mm. The component is RoHS compliant and suitable for high-density mounting in downsized equipment.

Feature Summary

• Integrated bias resistor simplifies circuit design by reducing external component count
• Ultraminiature leadless package enables high-density surface mount applications
• NPN silicon epitaxial planar construction ensures reliable switching performance

Applications

• Digital logic circuits requiring compact switching elements
• High-density electronic equipment downsizing
• General-purpose transistor switching applications

Procurement Notes

Verify the specific ordering suffix against official Panasonic documentation to confirm exact electrical characteristics and packaging details. Ensure compliance with RoHS directives and check for any lifecycle status changes before procurement. Cross-reference part numbers carefully as minor suffix variations may indicate different specifications or packaging types.

Selection Notes

Select this component when space constraints require an ultraminiature footprint with integrated biasing. Verify that the 0.08 A collector current and 50 V voltage ratings meet the target circuit requirements. Consider the built-in resistor ratio of 1 for base drive calculations. Confirm thermal dissipation capabilities align with the application's power density needs.

Part Context

This transistor belongs to Panasonic's lineup of transistors with built-in resistors, specifically designed for digital circuits. The UNRF series offers a compact alternative to discrete transistor-resistor combinations, facilitating simplified board layouts and reduced assembly complexity in modern consumer and industrial electronics.

Replacement Considerations

Consult Panasonic's official cross-reference tools for verified substitutes. Ensure any replacement matches the ML3-N2 package dimensions and electrical ratings. Verify that the substitute maintains the same built-in resistor ratio if circuit compatibility is critical.
