UP05C8PG0L

Overview

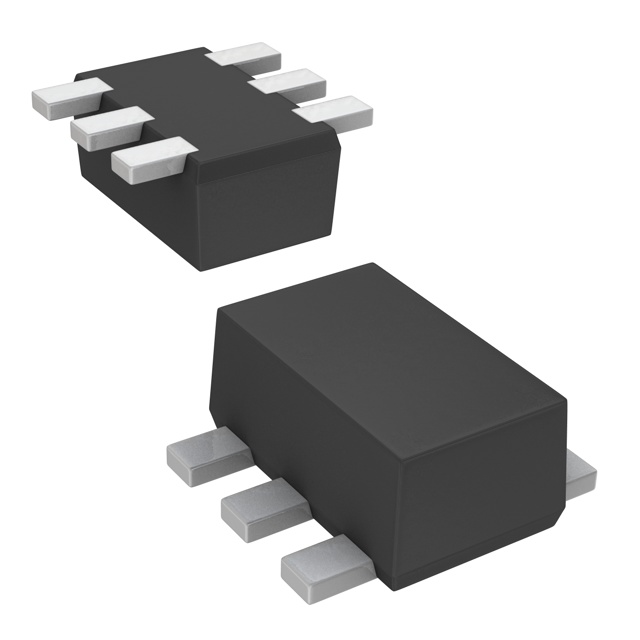

The UP05C8PG0L is a multi-chip discrete component manufactured by Panasonic Electronic Components, integrating a silicon NPN epitaxial planar transistor and a CCD load device within a single SSMini6-F2 package. The transistor section provides a collector-emitter voltage rating of 20 V and a continuous collector current capacity of 50 mA. The integrated CCD load device operates as a limiting element with a maximum voltage of 40 V and a maximum current of 10 mA. The total power dissipation for the combined unit is rated at 125 mW.

Feature Summary

• Integrates two distinct semiconductor elements into one compact package to reduce equipment size and part count.

Applications

• CCD output circuits

Procurement Notes

Verify the specific product lifecycle status before procurement, as this component may be subject to maintenance or discontinuation plans. Confirm that the SSMini6-F2 package dimensions and pinout align with existing board layouts. Ensure compliance with RoHS Directive (EU 2002/95/EC) requirements for the intended application environment.

Selection Notes

Select this component when space constraints require combining a switching transistor with a specialized load device in a single footprint. It is suitable for applications needing an NPN transistor paired with a CCD load element. Verify that the 20 V transistor rating and 40 V load device rating meet the circuit's electrical demands.

Part Context

This component belongs to the UP05C8PG series of multi-chip discrete devices designed specifically for imaging sensor interfaces. It combines standard bipolar transistor functionality with specialized load characteristics required for CCD signal processing. The integration simplifies circuit design by reducing the number of individual components needed on the printed circuit board.

Replacement Considerations

RN1705JE(TE85L,F)
