V20K202-M3/I

Single Diodes Overview

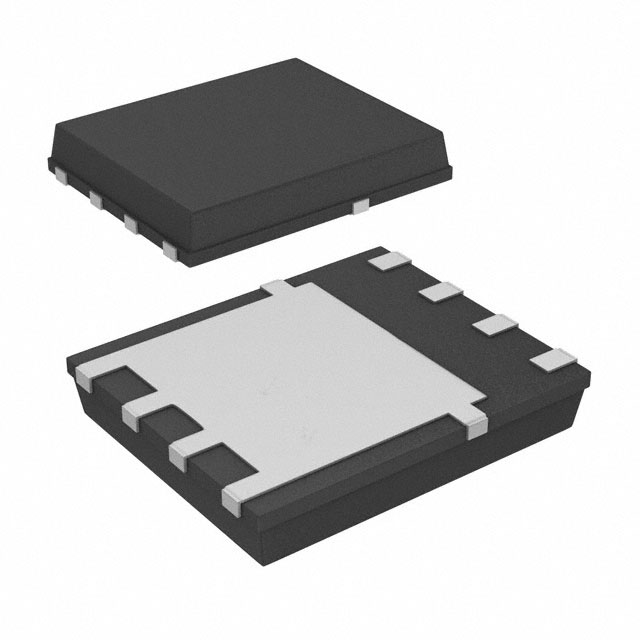

The V20K202-M3/I is a high current density surface-mount Trench MOS Barrier Schottky (TMBS) rectifier manufactured by Vishay General Semiconductor. It features a single circuit configuration housed in a FlatPAK 5 x 6 package. The device supports a maximum repetitive peak reverse voltage of 200 V and an average forward rectified current of 20 A. Key electrical parameters include a peak forward surge current of 220 A, a maximum junction temperature of 165 °C, and a typical instantaneous forward voltage of 0.72 V at 20 A and 125 °C.

Single Diodes Feature Summary

• Utilizes Trench MOS Schottky technology to achieve ultra-low forward voltage drop and reduced power losses for high efficiency operation.
• Complies with J-STD-020 standards, meeting MSL level 1 classification with a lead-free maximum peak soldering temperature of 260 °C.
• Features matte tin-plated terminals that are solderable per JESD 22-B102 and pass the JESD 201 class 2 whisker test.

Single Diodes Applications

• Low voltage high frequency DC/DC converters
• Freewheeling diodes
• Polarity protection applications

Single Diodes Procurement Notes

Verify the specific ordering suffix against official documentation before procurement. The /I suffix indicates a base quantity of 6000 units delivered in a 13-inch diameter plastic tape and reel. Confirm compliance requirements such as RoHS and halogen-free status associated with the -M3 designation. Ensure thermal management aligns with the specified junction-to-ambient resistance values.

Single Diodes Selection Notes

Select this component when low forward voltage drop is critical for minimizing conduction losses in high-frequency switching environments. The FlatPAK 5 x 6 package provides a compact footprint suitable for space-constrained designs. Evaluate thermal performance based on the operating ambient temperature and ensure the heat dissipation path meets the junction-to-ambient thermal resistance limits defined in the datasheet.

Single Diodes Part Context

This part belongs to the V20K series of high current density TMBS rectifiers from Vishay. These devices are engineered for robust performance in demanding power conversion applications. The series integrates advanced trench technology to deliver superior electrical characteristics compared to standard Schottky rectifiers, specifically targeting efficiency improvements in modern electronic systems.

Single Diodes Replacement Considerations

V20K202HM3_A/I

Single Diodes FAQ

What is the maximum operating junction temperature?

The maximum operating junction temperature range extends up to +165 °C.

Does the device meet automotive qualification standards?

Standard versions are not explicitly qualified; however, AEC-Q101 qualified variants are available under the HM3 ordering code.
