Product Detailed Parameters

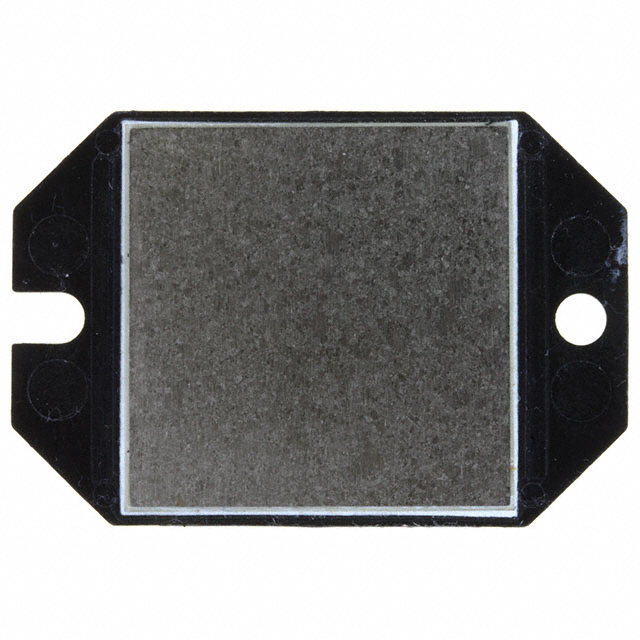

- Description：IGBT MOD 600V 69A 208W ECO-PAC2
- Series：-
- Mfr：IXYS
- Package：Box
- IGBT Type：NPT
- Configuration：Full Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：2.8V @ 15V, 75A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：ECO-PAC2
- Supplier Device Package：ECO-PAC2
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：69 A
- Power - Max：208 W
- Current - Collector Cutoff (Max)：800 µA
- Input Capacitance (Cies) @ Vce：2.8 nF @ 25 V
Download product information
Overview
The VKI75-06P1 is a phase-out IGBT module from IXYS, utilizing NPT technology in an ECO-PAC 2 package. It integrates high-speed free-wheeling diodes and features a copper base plate for thermal management. Key electrical ratings include a collector-emitter voltage of 600 V, a continuous collector current of 69 A at 25°C case temperature, and a short-circuit withstand time of 10 µs. The module incorporates an NTC temperature sensor and offers a square RBSOA with no latch-up risk.
Feature Summary
- NPT IGBT technology providing low saturation voltage and switching losses
- Positive temperature coefficient facilitating easy paralleling
- Square RBSOA without latch-up risk and high short circuit capability
- Integrated ultra-fast free wheeling diodes
Applications
- DC motor armature and excitation winding control
- Synchronous motor excitation winding supply
- Transformer primary winding power supplies including welding and X-ray equipment
- UPS systems and battery chargers
Procurement Notes
This component is officially marked as phase-out by the manufacturer. Verify availability through authorized distributors or secondary markets. Confirm final unit condition and authenticity before purchase due to discontinued status.
Selection Notes
Select this module for applications requiring robust short-circuit tolerance and positive temperature coefficients. Ensure heatsink compound specifications match the thermal resistance calculations provided in the datasheet for optimal performance.
Part Context
The VKI75-06P1 belongs to the VKI series of IGBT modules designed for industrial power electronics. It utilizes the ECO-PAC 2 packaging format, which supports wave soldering and provides a compact solution for medium-power conversion tasks.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the verified documentation. Evaluate alternative IXYS modules with matching voltage and current ratings if replacement is required.
FAQ
What is the maximum short-circuit withstand time?
The non-repetitive short-circuit withstand time (SCSOA) is 10 µs at a junction temperature of 125°C.
Does the module include a temperature sensor?
Yes, the module includes an integrated NTC temperature sensor with a typical resistance of 470 kΩ at 25°C.
What is the isolation voltage rating?
The module has an isolation voltage rating of 3000 V~ at 50/60 Hz with an isolation current of ≤ 1 mA.
