VO617C-1X016

Transistor, Photovoltaic Output Optoisolators Overview

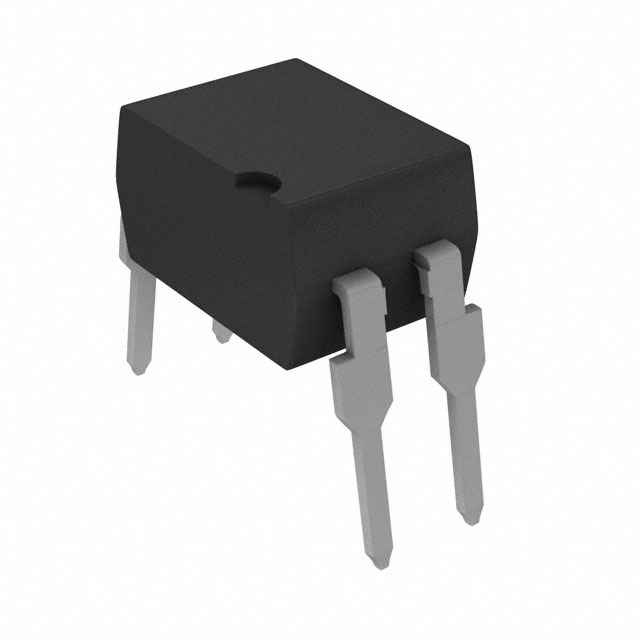

The VO617C-1X016 is a single-channel transistor output optocoupler from Vishay Semiconductor Opto Division, housed in a DIP-4 package. It features a high current transfer ratio of 100-200% at 5mA input and supports a maximum forward current of 60mA. The device provides robust isolation with a voltage rating of 5300Vrms and complies with VDE standards. Key electrical parameters include a collector-emitter saturation voltage of 400mV maximum, a collector current capacity of 50mA, and an operating temperature range spanning -55°C to +110°C.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• High current transfer ratio for efficient signal transmission
• High isolation voltage ensuring reliable circuit separation
• Low coupling capacitance for improved noise immunity

Transistor, Photovoltaic Output Optoisolators Applications

• Industrial control systems requiring galvanic isolation
• Power supply feedback loops
• Signal interface between microcontrollers and high-voltage circuits

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix '1X016' against official Vishay documentation to confirm packaging and tape-and-reel specifications. Ensure compliance with RoHS directives as indicated in the datasheet. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Confirm that the DIP-4 through-hole package matches the target PCB footprint requirements before finalizing orders.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high isolation voltage and a wide operating temperature range are critical. The 100-200% CTR range offers flexibility in drive circuit design compared to standard variants. Consider the DIP-4 form factor for applications where surface-mount space is not constrained but high reliability is required. Evaluate the low coupling capacitance benefit for noise-sensitive environments.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the VO617C series of low input current optocouplers designed for general-purpose isolation applications. The series emphasizes high reliability and safety certification, making it suitable for industrial and commercial equipment. The specific model integrates a phototransistor output optimized for digital switching speeds while maintaining high voltage withstand capabilities across the isolation barrier.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
