VS-150KSR10

Single Diodes Overview

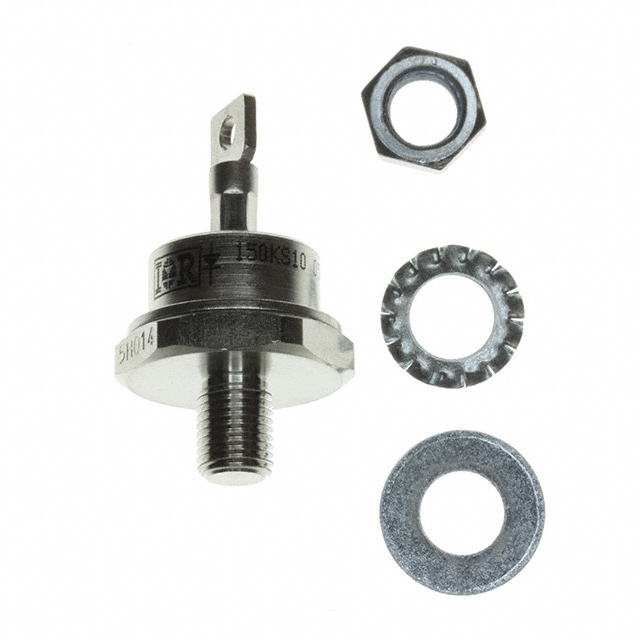

The VS-150KSR10 is a general-purpose reverse polarity diode manufactured by Vishay General Semiconductor - Diodes Division. It features a maximum DC reverse voltage of 100 V and supports a continuous forward current of 150 A. The component utilizes a B-42 chassis stud mount package, designed for robust mechanical stability in high-power applications.

Single Diodes Feature Summary

• Engineered specifically for reverse polarity protection in power circuits
• Capable of handling high surge currents with a 150 A rating
• Utilizes a durable chassis stud mount configuration for efficient thermal dissipation

Single Diodes Applications

• Chassis-mounted rectification in industrial power supplies
• Reverse polarity protection for automotive electrical systems
• High-current DC power distribution units

Single Diodes Procurement Notes

Verify the exact suffix against official Vishay documentation to confirm pinout and mounting hole specifications. Ensure the procurement channel provides valid RoHS compliance certificates. Cross-reference the datasheet revision date to guarantee compatibility with current manufacturing standards before finalizing orders.

Single Diodes Selection Notes

Select this component when a low-profile, high-current solution is required for fixed installations. The B-42 package necessitates specific heatsinking infrastructure. Evaluate thermal resistance requirements carefully, as the stud mount design relies on direct contact with a heat sink for optimal performance under full load conditions.

Single Diodes Part Context

This device belongs to the VS-150KS series of high-current standard recovery diodes. It shares the same physical footprint and current capabilities as variants like the VS-150KS40, differing primarily in reverse voltage ratings. The series is designed for rugged environments requiring reliable rectification or blocking functions.

Single Diodes Replacement Considerations

Direct substitutes include other 100V, 150A chassis-mount diodes from Vishay such as the VS-150KS10. Verify that alternative parts match the B-42 mounting dimensions and terminal configuration to ensure mechanical interchangeability without redesigning the PCB or chassis.
