VS-50PF120W

Single Diodes Overview

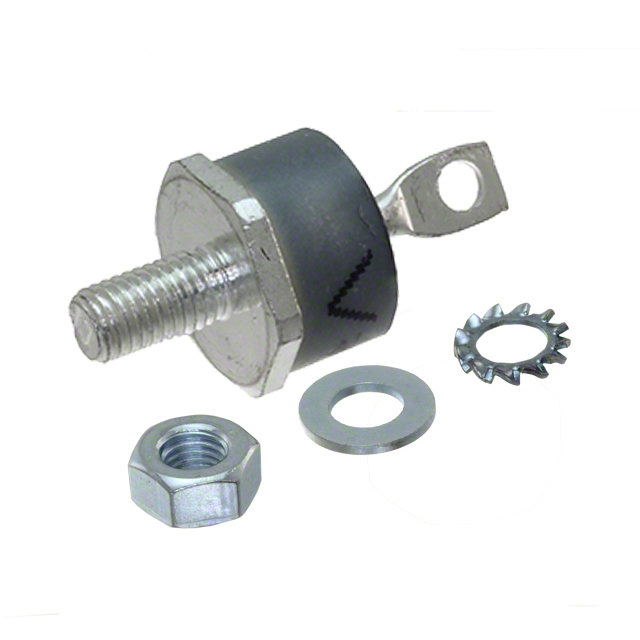

The VS-50PF120W is a standard rectifier diode manufactured by Vishay General Semiconductor - Diodes Division. It features a maximum repetitive peak reverse voltage of 1200 V and an average forward rectified current rating of 50 A. The device utilizes a DO-203AB (DO-5) stud mount package, designed for high-power applications requiring robust thermal management. Key electrical characteristics include a forward voltage drop of 1.4 V at a forward current of 125 A. The component is compliant with RoHS standards and is lead-free.

Single Diodes Feature Summary

• High voltage blocking capability suitable for demanding power conversion environments
• Robust stud mount construction for efficient heat dissipation
• Lead-free manufacturing process ensuring environmental compliance

Single Diodes Applications

• Industrial power supplies
• Inverter circuits
• Motor drive systems

Single Diodes Procurement Notes

Verify the specific suffix 'W' against the manufacturer's official datasheet to confirm it denotes the correct variant or packaging specification. Ensure that the procurement documentation explicitly references the VS-50PF120W part number to avoid confusion with similar models in the VS-50PF series. Confirm RoHS compliance status through the supplier's certificate of conformity prior to finalizing orders.

Single Diodes Selection Notes

Select this component when designing circuits requiring high voltage isolation and significant current handling capacity. The stud mount package necessitates compatible mounting hardware and thermal interface materials. Evaluate the thermal resistance characteristics to ensure adequate heatsinking solutions are integrated into the design for reliable operation under continuous load conditions.

Single Diodes Part Context

This component belongs to the VS-50PF series of standard rectifier diodes from Vishay. The series offers various voltage ratings while maintaining consistent current handling capabilities. The DO-203AB package is a legacy form factor often used in industrial equipment where mechanical stability and thermal performance are prioritized over miniaturization.

Single Diodes Replacement Considerations

Consult Vishay's official cross-reference guides for direct replacements. Verify that any substitute component matches the 1200 V reverse voltage, 50 A current rating, and DO-203AB physical dimensions to ensure compatibility with existing board layouts and thermal designs.
