VS-GT105LA120UX

Description：IGBT MOD 1200V 134A 463W SOT227
Series：-

SKU:6969685f09ff Category: IGBT Modules Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 134A 463W SOT227
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tube
IGBT Type：NPT
Configuration：Single
Vce(on) (Max) @ Vge, Ic：-
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount

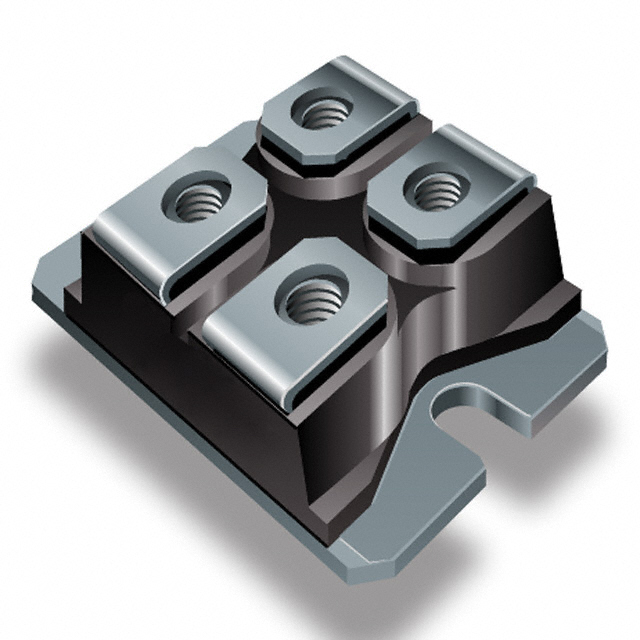

Package / Case：SOT-227-4, miniBLOC
Supplier Device Package：SOT-227
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：134 A
Power - Max：463 W
Current - Collector Cutoff (Max)：75 µA
Input Capacitance (Cies) @ Vce：-

Download product information

VS-GT105LA120UX

Overview

The VS-GT105LA120UX is a single NPT IGBT module from Vishay General Semiconductor, designed for chassis mounting in the SOT-227 package. It features a maximum collector-emitter voltage of 1200 V and a continuous collector current of 134 A at 25°C. The device has a typical saturation voltage of 2.39 V and a power dissipation rating of 463 W. Operating temperatures range from -40°C to +150°C.

Feature Summary

Single NPT (Non-Punch Through) IGBT configuration
SOT-227 low-side chopper module design
Chassis mount installation style

Applications

Industrial motor drives
Inverter systems
Power supply units

Procurement Notes

Verify the specific suffix against the official datasheet to confirm exact electrical characteristics and thermal resistance values. Ensure the procurement channel provides authentic Vishay components with traceable documentation. Confirm that the SOT-227 mounting requirements match the application's mechanical constraints before ordering.

Selection Notes

Select this component for applications requiring high voltage blocking capability and substantial current handling in a compact chassis-mount form factor. Consider the 1200V rating for medium-voltage AC or DC bus applications. Evaluate the 463W power dissipation against the available heatsinking capacity to ensure safe junction temperature operation under load.

Part Context

This part belongs to the VS-GT series of insulated-gate bipolar transistors manufactured by Vishay General Semiconductor. These modules are engineered for robust performance in high-power electronic conversion systems, offering a balance of switching speed and conduction efficiency within the SOT-227 footprint.

Replacement Considerations

The VS-GT55LA120UX is a documented substitute within the same product family, though it offers lower current ratings. Verify compatibility regarding pinout, thermal interface, and voltage specifications when considering alternative models.
