VS-VS5HD600CW60

Diode Arrays Overview

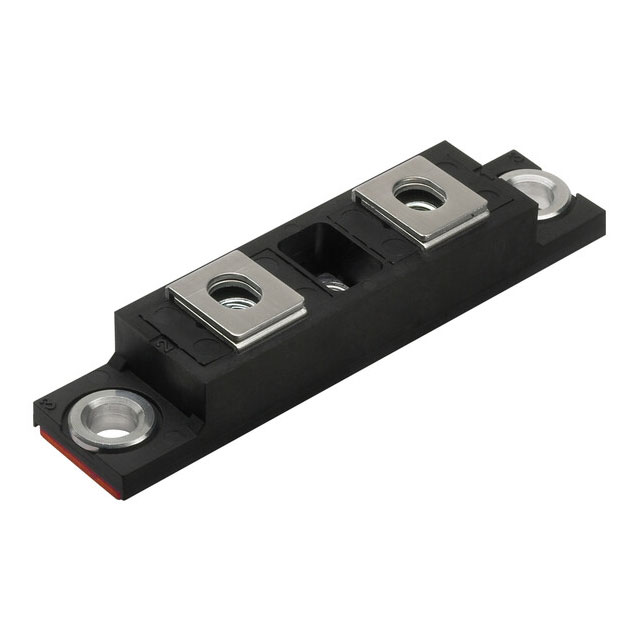

The VS-VS5HD600CW60 is a FRED Pt® Gen 5 ultrafast rectifier diode module rated at 600 V and 600 A. It features a two-diode common cathode configuration in a TO-244 package. Key electrical parameters include a typical reverse recovery time (trr) of 78 ns, a peak forward voltage drop of 1.70 V at 300 A, and a maximum junction temperature of 175 °C.

Diode Arrays Feature Summary

• Ultrafast switching with optimized reverse recovery charge for high-speed operation
• Balanced trade-off between low forward voltage drop and reduced switching losses
• High thermal efficiency supporting continuous operation up to 175 °C junction temperature

Diode Arrays Applications

• Soft-switched and resonant converters
• Medium-frequency hard-switching converters
• HF welding power supplies
• General power conversion systems requiring low switching loss

Diode Arrays Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct package and circuit configuration. Confirm that the component meets RoHS3 compliance requirements for your region. Validate all electrical parameters against the official datasheet before finalizing procurement specifications.

Diode Arrays Selection Notes

Select this module when applications demand high current handling combined with minimal switching losses. The TO-244 wire-bondable package facilitates efficient mounting on heatsinks. Ensure the design accounts for the specified thermal resistance values to maintain safe operating temperatures under continuous load conditions.

Diode Arrays Part Context

This component belongs to the Vishay FRED Pt® Gen 5 series, designed specifically for advanced power electronics. It utilizes silicon carbide technology to enhance performance over standard fast recovery diodes. The module integrates two diodes into a single unit to simplify circuit layout and improve reliability in high-power environments.

Diode Arrays Replacement Considerations

Consult the official Vishay datasheet for direct cross-reference part numbers. Verify that any substitute matches the 600 V rating, 600 A current capacity, and TO-244 package dimensions. Ensure thermal characteristics and reverse recovery times are compatible with the existing circuit design.

Diode Arrays FAQ

What is the maximum junction temperature for the VS-VS5HD600CW60?

The maximum operating junction temperature is 175 °C.

How is the internal circuit configured?

The module contains two diodes arranged in a common cathode configuration.

What is the typical reverse recovery time at 25 °C?

The typical reverse recovery time (trr) is 78 ns when tested at TJ = 25 °C, IF = 50 A, dIF/dt = 200 A/µs, and VR = 300 V.
