W134MHT

Clock Generators, PLLs, Frequency Synthesizers Overview

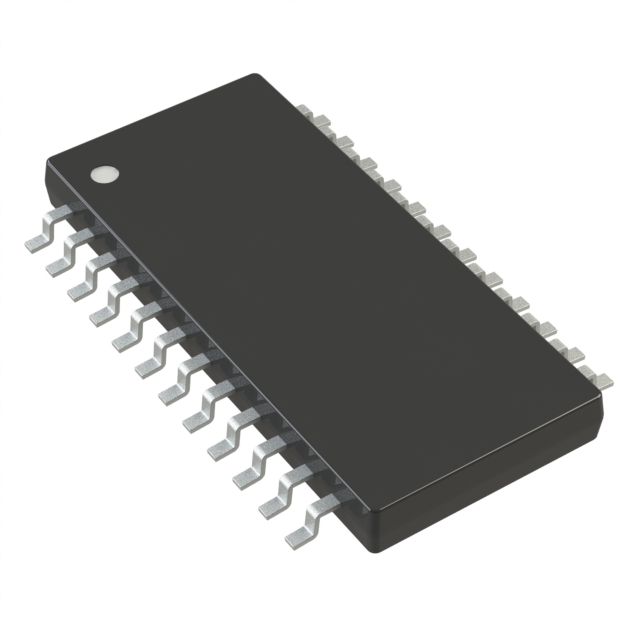

The W134MHT is a Direct Rambus Clock Generator manufactured by Skyworks Solutions, Inc. It operates at a maximum frequency of 400MHz and provides differential output signals. The device utilizes an internal Phase-Locked Loop (PLL) to generate clock signals from an LVCMOS input. It functions within a supply voltage range of 3.135V to 3.465V and supports an operating temperature range of 0°C to 70°C. The component is housed in a 24-QSOP package with dimensions of 0.154 inches (3.90mm) width.

Clock Generators, PLLs, Frequency Synthesizers Feature Summary

• Generates differential clock outputs for Direct Rambus applications
• Integrates an internal Phase-Locked Loop circuit
• Accepts single-ended LVCMOS input signals

Clock Generators, PLLs, Frequency Synthesizers Applications

• Direct Rambus memory systems
• High-speed digital interface timing circuits
• Computer peripheral clock generation

Clock Generators, PLLs, Frequency Synthesizers Procurement Notes

Verify component authenticity through authorized channels due to end-of-life status. Confirm package integrity and moisture sensitivity level handling requirements prior to assembly. Review manufacturer product change notices for any historical revisions affecting pinout or electrical characteristics before finalizing design implementations.

Clock Generators, PLLs, Frequency Synthesizers Selection Notes

Select this component specifically for Direct Rambus architectures requiring 400MHz differential clocking. Ensure the system design accommodates the specified 3.135V to 3.465V supply voltage range. Verify that the 24-QSOP footprint matches the PCB layout constraints and thermal management requirements for the target operating environment.

Clock Generators, PLLs, Frequency Synthesizers Part Context

This part belongs to the W134 series of clock generators designed for high-speed memory interfaces. It serves as a timing solution for Rambus-based systems, converting single-ended inputs into differential outputs to improve signal integrity in high-frequency digital applications.

Clock Generators, PLLs, Frequency Synthesizers Replacement Considerations

The W134MHT is listed as an obsolete component. No direct public substitute part numbers are confirmed in the provided documentation. Designers should consult official obsolescence notices for potential alternative solutions.
