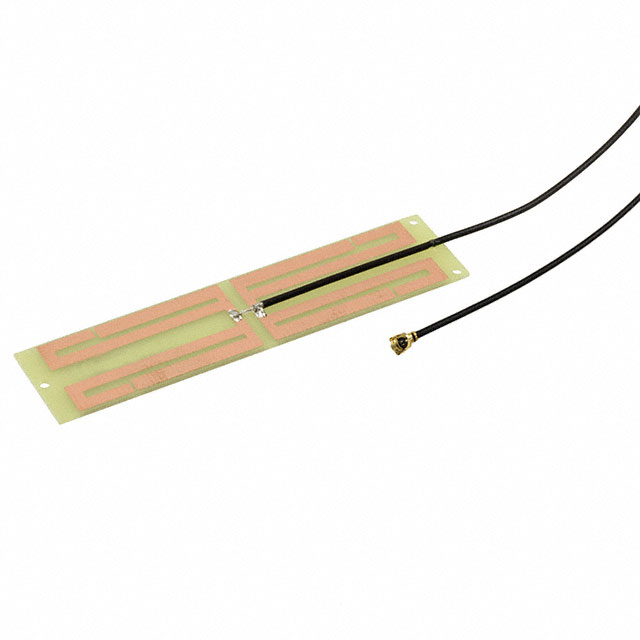

W3513 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is RF ANT 2.4GHZ/5GHZ PCB TRACE SMD. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for W3513
- Description：RF ANT 2.4GHZ/5GHZ PCB TRACE SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Bulk
- RF Family/Standard：WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.4GHz, 5GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz
- Antenna Type：PCB Trace
- Number of Bands：2
- VSWR：-
- Return Loss：-10dB
- Gain：2dBi
- Features：Cable - 250mm
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.035" (0.90mm)
- Applications：Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for W3513
Antennas RF Overview
The W3513 is a printed circuit board (PCB) trace antenna manufactured by Pulse Electronics, designed for dual-band wireless communication applications. It operates within the frequency range of 4.9 GHz to 5.85 GHz and supports the 2.4 GHz band, covering standards such as Wi-Fi, Bluetooth, and Zigbee. The component features a gain of 2 dBi and an input impedance of 50 ohms. It utilizes a U.FL connector for interface and is rated for an operating temperature range of -40°C to 85°C. The antenna is RoHS compliant and suitable for access point routers and wireless devices.
Antennas RF Feature Summary
- Dual-band operation supporting 2.4 GHz and 5 GHz wireless protocols
- Low-profile PCB trace design for compact integration
- U.FL connector interface for flexible cable attachment
- RoHS compliant construction for environmental safety
Antennas RF Applications
- Wireless access points and routers
- Bluetooth-enabled consumer electronics
- Zigbee smart home devices
- Wi-Fi IoT modules
Antennas RF Procurement Notes
Verify the specific revision and packaging configuration prior to ordering, as manufacturing updates may occur without functional changes. Confirm that the U.FL connector orientation matches the target PCB layout. Ensure compliance with local electromagnetic interference regulations for the intended deployment region. Cross-reference the manufacturer's latest datasheet for any updates on material composition or testing standards before finalizing procurement specifications.
Antennas RF Selection Notes
Select the W3513 when a low-profile, dual-band solution is required for space-constrained wireless designs. Its 50-ohm impedance ensures compatibility with standard RF transmission lines. The U.FL interface allows for easy integration with existing cable assemblies. Consider this component for applications requiring certified performance in both 2.4 GHz and 5 GHz bands without the need for external radiating elements.
Antennas RF Part Context
The W3513 belongs to Pulse Electronics' portfolio of RF antennas designed for modern wireless connectivity. It complements other components in the company's wireless ecosystem by providing reliable signal transmission for multi-protocol devices. This model addresses the growing demand for integrated, low-profile antennas in compact electronic devices, supporting the expansion of IoT and wireless networking infrastructure.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available for the W3513. Any replacement must be evaluated based on identical electrical parameters, mechanical dimensions, and connector type to ensure system compatibility.
