W765FL-120-AH-AGDP

Antennas RF Overview

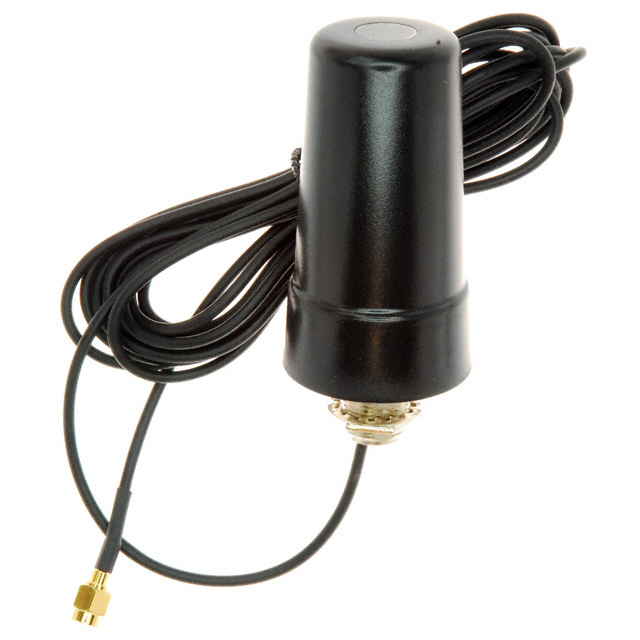

The Nearson W765FL-120-AH-AGDP is a multi-band external antenna designed for panel mounting. It operates across two frequency ranges: 824–960 MHz and 1710–1990 MHz, supporting applications such as AMPS, GSM, DCS, and PCS systems. The device features a dome antenna type with vertical polarization and provides a gain of 2 dBi. It utilizes an RP-SMA male connector for termination and has a maximum height of 72.00 mm (2.835 inches). The unit is RoHS compliant.

Antennas RF Feature Summary

• Multi-band operation covering 824–960 MHz and 1710–1990 MHz frequencies
• Dome-style design suitable for panel mounting applications
• Vertical polarization with 2 dBi gain performance
• RP-SMA male connector interface for secure attachment

Antennas RF Applications

• AMPS cellular systems
• GSM communication networks
• DCS frequency band operations
• PCS system integration

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required frequency bands and connector types. Confirm that the RP-SMA male termination matches the host equipment interface. Check RoHS compliance status if environmental regulations apply to the deployment site. Ensure the panel mount dimensions accommodate the 72.00 mm height constraint in the installation area.

Antennas RF Selection Notes

Select this component when dual-band coverage for lower and upper cellular frequencies is required. The dome form factor offers durability for outdoor or exposed installations. Verify that the 2 dBi gain meets the link budget requirements for the intended application range. Ensure the RP-SMA male connector aligns with existing cable assemblies or radio interfaces.

Antennas RF Part Context

This model belongs to the Nearson W765FL series of RF antennas. The series includes various configurations tailored for different mounting styles and frequency requirements. This specific variant focuses on multi-band cellular support with a robust dome construction. It serves as a specialized solution for wireless infrastructure requiring reliable signal transmission across defined cellular standards.

Antennas RF Replacement Considerations

Cross-reference with other Nearson W765FL variants for alternative mounting options or connector types. Ensure any substitute maintains the same RP-SMA male interface and covers the identical 824–960 MHz and 1710–1990 MHz bands. Verify mechanical fitment and electrical specifications before substitution.
