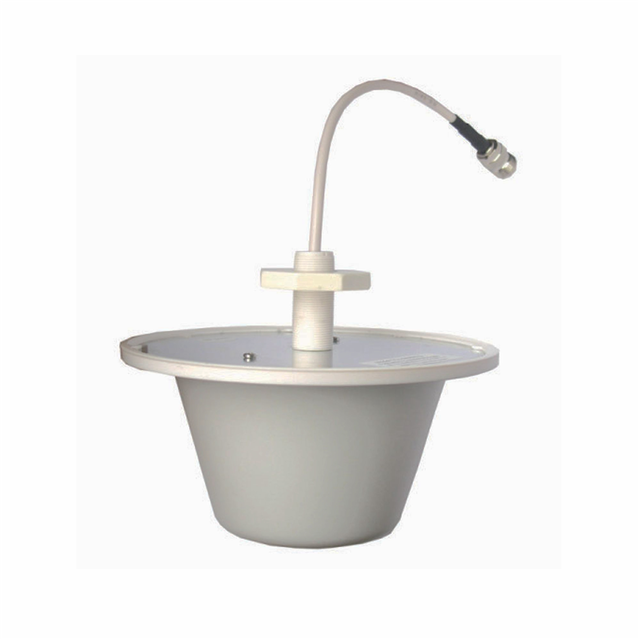

WAC24062 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Turmode. Its product description is CEILING WIFI ANTENNA FOR 2.4GHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for WAC24062
- Description：CEILING WIFI ANTENNA FOR 2.4GHZ
- Series：-
- Mfr：Turmode
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4415GHz
- Frequency Range：2.4GHz ~ 2.483GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：5.5dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Ceiling Mount
- Height (Max)：3.350" (85.09mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for WAC24062
Antennas RF Overview
The Turmode WAC24062 is a directional WiFi antenna designed for indoor and outdoor use. It operates on the 2.4GHz frequency band, providing a gain of 5.5dBi to enhance signal strength and range for devices such as routers and access points. The antenna features an N Type Female termination and has a VSWR of 1.5.
Antennas RF Feature Summary
- Directional design for focused signal transmission
- Suitable for both indoor and outdoor environments
- Enhances WiFi device signal strength
Antennas RF Applications
- WiFi routers
- Access points
- WiFi adapters
Antennas RF Procurement Notes
Verify the specific model number WAC24062 against official Turmode documentation to ensure compatibility with your existing network infrastructure. Confirm that the N Type Female connector matches your equipment requirements. Check environmental ratings if deploying in harsh outdoor conditions.
Antennas RF Selection Notes
Select this antenna when a directional solution is required to extend the range of 2.4GHz networks. The 5.5dBi gain offers a balance between coverage area and signal focus. Ensure the installation location allows for proper alignment to maximize performance.
Antennas RF Part Context
This component belongs to the Turmode RF Antennas product line, which includes various directional and omni-directional options for wireless communication systems. It is part of a series designed to improve connectivity for standard WiFi devices operating in the 2.4GHz spectrum.
Antennas RF Replacement Considerations
Consider the Turmode WAY24134 Yagi antenna or other Turmode directional models if higher gain or different form factors are needed. Verify connector type and frequency compatibility before substituting.
