XA7S50-1FGGA484I

Field Programmable Gate Array Overview

The XA7S50-1FGGA484I is an industrial-grade Field Programmable Gate Array (FPGA) from the AMD/Xilinx Spartan-7 XA family. It utilizes a 28nm High Performance Low Power (HPL) process technology to deliver robust logic density and energy efficiency. The device features 52,160 Logic Cells, 8,150 Adaptive Logic Modules (ALMs), and 2,640 Kbits of embedded memory. It provides 250 user I/Os and operates within a temperature range of -40°C to +100°C. The component is housed in a 484-ball FCBGA package with a 1.0mm pitch, designed for high-reliability applications requiring extended lifecycle support.

Field Programmable Gate Array Feature Summary

• Industrial-grade reliability with AEC-Q100 qualification and extended temperature range support
• High-density logic architecture based on mature 28nm HPL process technology
• Integrated high-speed serial transceivers for complex communication protocols
• Comprehensive embedded memory resources including block RAM and distributed RAM

Field Programmable Gate Array Applications

• Automotive infotainment systems and gateway controllers
• Industrial automation and motion control interfaces
• Telecommunications baseband processing
• Medical imaging equipment signal processing

Field Programmable Gate Array Procurement Notes

Verify the specific suffix codes against official AMD documentation to confirm the exact speed grade, temperature rating, and packaging variant. Ensure that the procurement channel provides valid traceability records suitable for automotive or industrial certification requirements. Cross-reference the part number with current lifecycle status notices to confirm availability and long-term supply commitments.

Field Programmable Gate Array Selection Notes

Compare the XA7S50-1FGGA484I against the XC7S50 series if automotive qualification is not required, as the latter may offer different cost-performance ratios. Evaluate the available I/O count and transceiver bandwidth against system interface requirements. Consider the total power consumption profiles under varying load conditions to ensure thermal management solutions are adequate for the target enclosure design.

Field Programmable Gate Array Part Context

This component belongs to the Spartan-7 XA family, which extends the standard Spartan-7 capabilities with enhanced reliability features for harsh environments. It shares architectural similarities with the Artix-7 XA series but targets cost-sensitive applications requiring industrial durability. The 484-pin form factor allows for compact board designs while maintaining sufficient pin counts for peripheral connectivity.

Field Programmable Gate Array Replacement Considerations

XA7S50-1FGGA484Q

Field Programmable Gate Array FAQ

What is the operating temperature range for this FPGA?

The XA7S50-1FGGA484I supports an industrial operating temperature range from -40°C to +100°C.

How many logic cells does the device contain?

The device contains 52,160 Logic Cells and 8,150 Adaptive Logic Modules.

What type of package is used for this component?

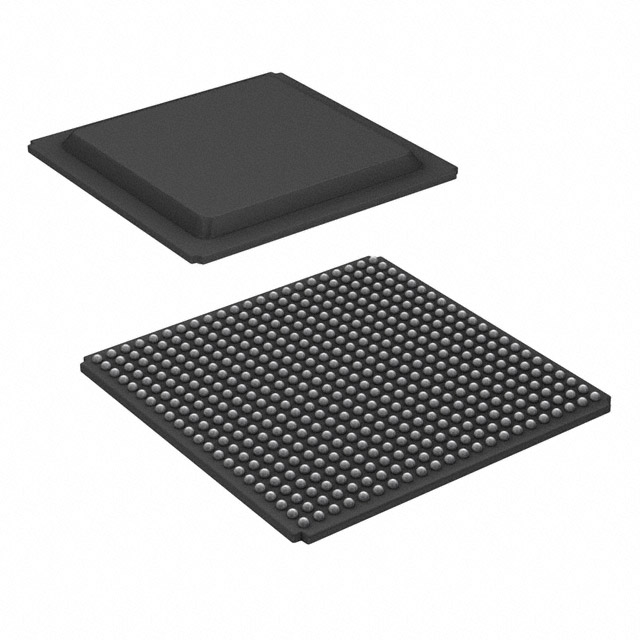

It uses a 484-ball Flip-Chip Ball Grid Array (FCBGA) package.
