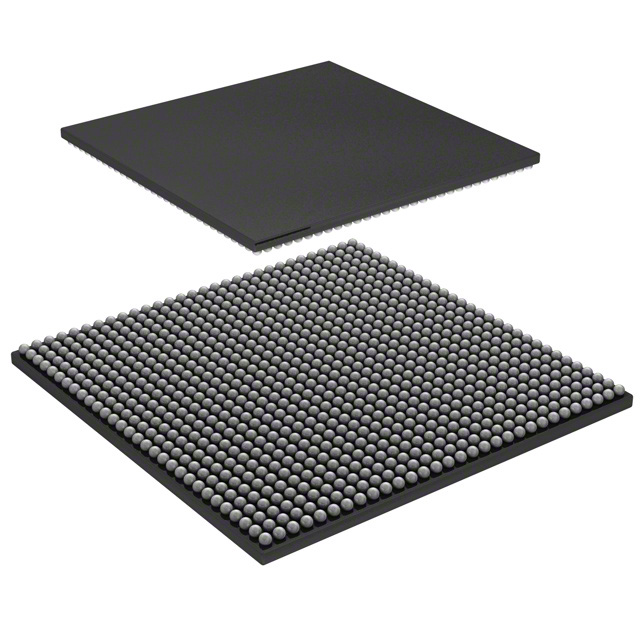

XC3S4000-4FG900I

Field Programmable Gate Array Overview

The XC3S4000-4FG900I is a field-programmable gate array (FPGA) belonging to the Xilinx Spartan-3A family. It utilizes 90 nm low-k CMOS technology and features 4,160,000 system gates with 256 Kbits of embedded block RAM. The device includes 18 DSP slices for high-performance arithmetic operations and supports up to 470 user I/O pins in the FG900 package. It operates at core voltages of 1.2V and 2.5V/3.3V, ensuring compatibility with standard interface standards while delivering scalable logic density for complex digital designs.

Field Programmable Gate Array Feature Summary

• High-density logic implementation using advanced 90 nm low-k process technology
• Integrated embedded block memory resources for data buffering and storage
• Dedicated digital signal processing slices for efficient mathematical computations
• Support for multiple industry-standard I/O protocols and voltage levels

Field Programmable Gate Array Applications

• Industrial automation and control systems
• Test and measurement equipment
• Telecommunications infrastructure components
• Medical imaging subsystems

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I' indicates industrial temperature range operation (-40°C to +85°C). Confirm the package type FG900 corresponds to the required pin count and thermal characteristics. Ensure authenticity through authorized distributors to avoid counterfeit components. Check for RoHS compliance status if environmental regulations apply to the deployment environment.

Field Programmable Gate Array Selection Notes

Select this component when moderate logic density and embedded memory are required within a cost-effective FPGA architecture. Compare against higher-end Virtex or lower-end Spartan families based on performance needs. Evaluate power consumption requirements against the 1.2V core voltage specifications. Consider the FG900 package availability and board space constraints during the initial design phase.

Field Programmable Gate Array Part Context

This part belongs to the Spartan-3A FPGA family, which bridges the gap between entry-level and mid-range programmable logic devices. It shares architectural similarities with the Spartan-3E but offers increased capacity and enhanced features. The family is designed for applications requiring reliable, scalable logic solutions without the complexity of high-end FPGAs.

Field Programmable Gate Array Replacement Considerations

Direct replacements may include other Spartan-3A variants with similar gate counts or I/O configurations. Cross-reference pinouts and electrical specifications carefully when considering alternative packages or speed grades from the same family.
