XC5VLX30T-1FFG665I

Field Programmable Gate Array Overview

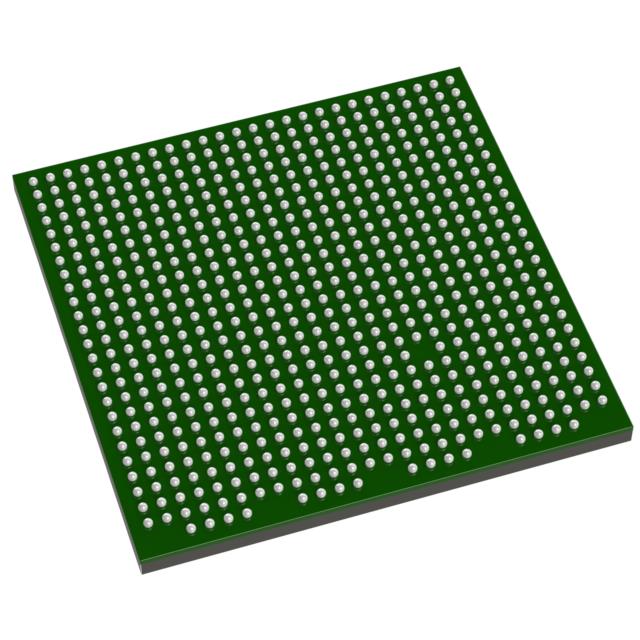

The XC5VLX30T-1FFG665I is a Virtex-5 LX family Field Programmable Gate Array manufactured by AMD. It features 30,720 logic elements and 4,800 Adaptive Logic Modules within a 665-pin FCBGA package. The device includes 1.27 Mbit of embedded memory, comprising 320 kbit distributed RAM and 1,296 kbit embedded block RAM. It supports up to 360 I/O pins and integrates eight transceivers capable of data rates up to 3.75 Gb/s. Operating at a nominal voltage of 1 V (range 950 mV to 1.05 V), it functions within a temperature range of -40°C to +100°C.

Field Programmable Gate Array Feature Summary

• Integrates eight high-speed serial transceivers for parallel interface applications
• Provides extensive programmable logic resources with adaptive logic modules
• Supports complex digital signal processing through dedicated embedded memory blocks

Field Programmable Gate Array Applications

• High-performance digital signal processing systems
• Parallel interface implementations requiring multi-gigabit serial connectivity
• Complex control logic in industrial or communication infrastructure

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I' indicates industrial temperature rating compliance. Confirm the 665-ball FCBGA footprint matches the target PCB design. Check for RoHS compliance status as indicated in official documentation. Ensure moisture sensitivity level handling procedures are followed during assembly.

Field Programmable Gate Array Selection Notes

Select this component when 30,000+ logic elements and eight serial transceivers are required. Compare against other Virtex-5 variants if higher logic density or different package sizes are needed. Verify that the 1.0V core voltage supply rails align with system power architecture constraints.

Field Programmable Gate Array Part Context

This part belongs to the AMD/Xilinx Virtex-5 FPGA family, designed for high-end performance and low power consumption. The LX series specifically targets cost-sensitive applications requiring significant logic capacity and serial connectivity without the full feature set of the SXT or QXT families.

Field Programmable Gate Array Replacement Considerations

Direct pin-compatible replacements within the same package may include other Virtex-5 LX devices with matching ball counts. Verify functional equivalence regarding transceiver count and memory size before substitution.
