XC5VLX50-1FFG676I

Field Programmable Gate Array Overview

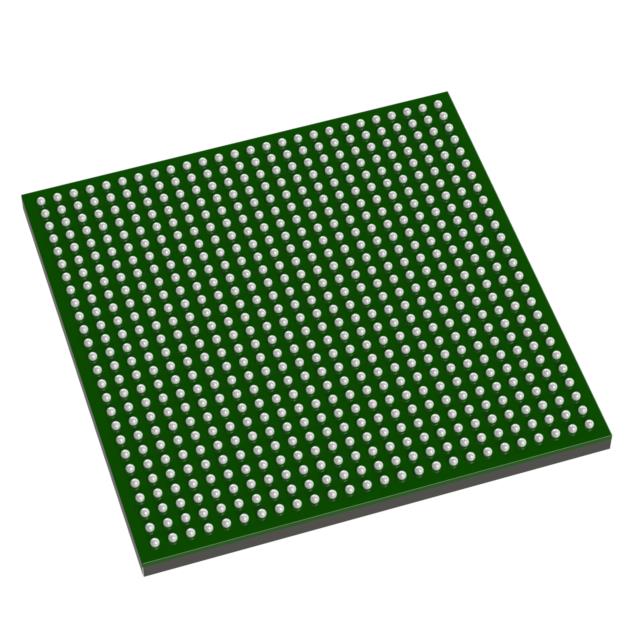

The XC5VLX50-1FFG676I is a Virtex-5 LX Field Programmable Gate Array manufactured by AMD. It features 46,080 logic elements and 440 I/Os within a 676-pin FCBGA package. The device operates at a supply voltage of 1V with an industrial temperature range of -40°C to +100°C. It includes 1.13 Mbit of embedded memory, comprising 320 kbit distributed RAM and 1.152 Mbit embedded block RAM. The maximum operating frequency reaches 550 MHz.

Field Programmable Gate Array Feature Summary

• Utilizes 65nm CMOS technology with the second-generation ASMBL column architecture for high-density logic implementation.
• Integrates Digital Clock Manager (DCM) and Phase-Locked Loop (PLL) blocks for precise clock management and jitter filtering.
• Supports ChipSync technology and Digital Control Impedance (DCI) active termination via SelectIO interfaces.

Field Programmable Gate Array Applications

• High-performance general-purpose logic processing
• Signal processing applications requiring flexible programmability
• Industrial control systems demanding wide temperature operation

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I' confirms the industrial temperature rating (-40°C to +100°C). Confirm the 676-ball FCBGA footprint matches the target PCB design. Check RoHS compliance status against current environmental regulations. Ensure ESD handling procedures are followed due to moisture sensitivity classification.

Field Programmable Gate Array Selection Notes

Compare logic density and I/O counts against alternative Virtex-5 models like the XC5VLX30 or XC5VLX85. Evaluate power consumption requirements relative to the 1V core voltage. Assess the need for specific DSP slices or transceivers if signal processing complexity increases beyond basic logic functions.

Field Programmable Gate Array Part Context

This component belongs to the AMD/Xilinx Virtex-5 LX family, designed for high-performance general-purpose logic applications. The LX platform balances logic capacity with cost efficiency, utilizing 65nm process technology. It serves as a scalable solution for designs requiring substantial programmable resources without the premium cost of higher-tier platforms.

Field Programmable Gate Array Replacement Considerations

Direct pin-compatible substitutes within the same package may include other Virtex-5 LX devices such as the XC5VLX50-1FFG676C, noting the difference in operating temperature ranges. Cross-series migration requires careful review of logic resource availability and I/O bank configurations.
