XC7A35T-L2CPG236E

Field Programmable Gate Array Overview

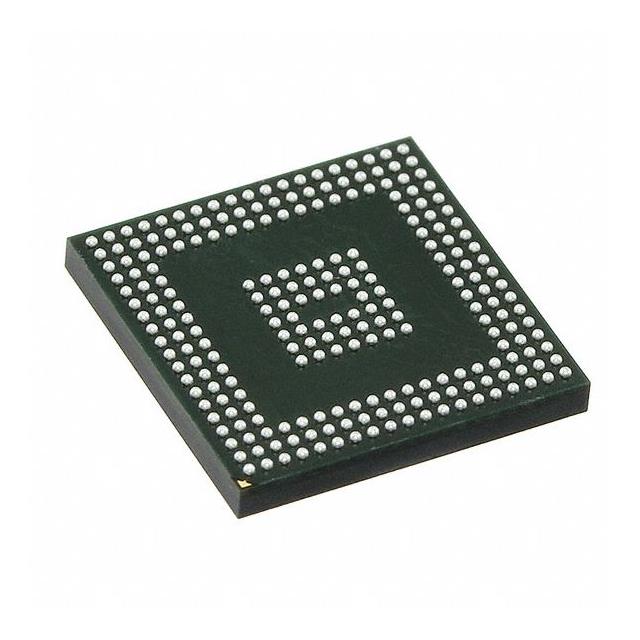

The AMD XC7A35T-L2CPG236E is a Field Programmable Gate Array belonging to the Artix-7 family, manufactured using 28nm HKMG technology. It provides 33,280 logic elements and 5,200 Adaptive Logic Modules (ALMs). The device integrates 1.76 Mbit of embedded memory and supports up to 106 I/O terminals. Operating voltage ranges from 950 mV to 1.05 V. It functions within a temperature range of 0°C to +85°C and utilizes a CSBGA-236 package.

Field Programmable Gate Array Feature Summary

• Artix-7 architecture optimized for cost and power efficiency
• High-density I/O capability in a compact 236-pin package
• Integrated block RAM for data buffering and processing

Field Programmable Gate Array Applications

• Industrial automation control systems
• Embedded vision system interfaces
• Communication infrastructure signal processing

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'L2' indicates the -40°C to +85°C commercial extended temperature grade. Confirm the 'E' suffix denotes RoHS compliance status. Ensure the CSBGA-236 footprint matches the target PCB design constraints before ordering.

Field Programmable Gate Array Selection Notes

Select this model when moderate logic density is required alongside high pin counts. Compare against XC7A35T-1 variants if higher speed grades are necessary. Evaluate thermal dissipation requirements for the CSBGA package under maximum load conditions.

Field Programmable Gate Array Part Context

This component is part of the broader Artix-7 portfolio, which includes variants with different logic capacities and package sizes. It shares the same core 28nm architecture as Kintex-7 and Virtex-7 devices but targets lower power and cost-sensitive applications.

Field Programmable Gate Array Replacement Considerations

Direct substitutes include other XC7A35T models with identical pinouts, such as XC7A35T-1CPG236C or XC7A35T-2CPG236I, provided speed grades and temperature ranges align with system specifications.
