XC7S50-2FTGB196C

Field Programmable Gate Array Overview

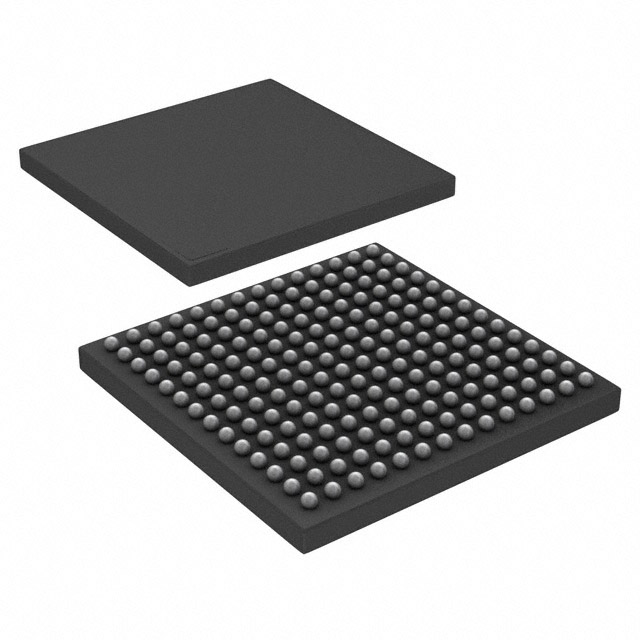

The AMD XC7S50-2FTGB196C is a Field Programmable Gate Array (FPGA) belonging to the Xilinx Spartan-7 family. It features 52,160 logic elements and 8,150 Adaptive Logic Modules (ALMs). The device includes 2.64 Mbit of embedded memory and supports 100 I/O pins. It operates within a voltage range of 1V and functions between -40°C and +125°C. The component is housed in a CSBGA-196 package.

Field Programmable Gate Array Feature Summary

• Supports high-density programmable logic with integrated adaptive architecture
• Includes substantial on-chip memory resources for data buffering and processing
• Designed for industrial temperature operation ranges

Field Programmable Gate Array Applications

• Industrial automation control systems
• Telecommunications infrastructure equipment
• Test and measurement instrumentation

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'C' against official AMD documentation to confirm commercial grade status and lead time classifications. Ensure the FTGB196 package type matches your PCB footprint requirements. Cross-reference the speed grade '2' with your timing constraints before ordering.

Field Programmable Gate Array Selection Notes

Compare this model against other Spartan-7 variants based on required ALM count and memory size. Verify that the 100 I/O limit meets your interface needs. Check if the -40°C to +125°C operating range satisfies your environmental specifications without requiring higher-grade components.

Field Programmable Gate Array Part Context

This part is part of the Spartan-7 FPGA series, targeting cost-sensitive applications requiring moderate logic density. It serves as an upgrade path from older Spartan-6 devices, offering improved performance per watt and enhanced I/O capabilities while maintaining compatibility with existing design tools.

Field Programmable Gate Array Replacement Considerations

Direct replacements include the XC7S50-1FTGB196C or XC7S50-2FTGB196I depending on temperature and speed requirements. Verify pin-to-pin compatibility and software configuration file compatibility before substituting.
