XC7S50-L1CSGA324I

Field Programmable Gate Array Overview

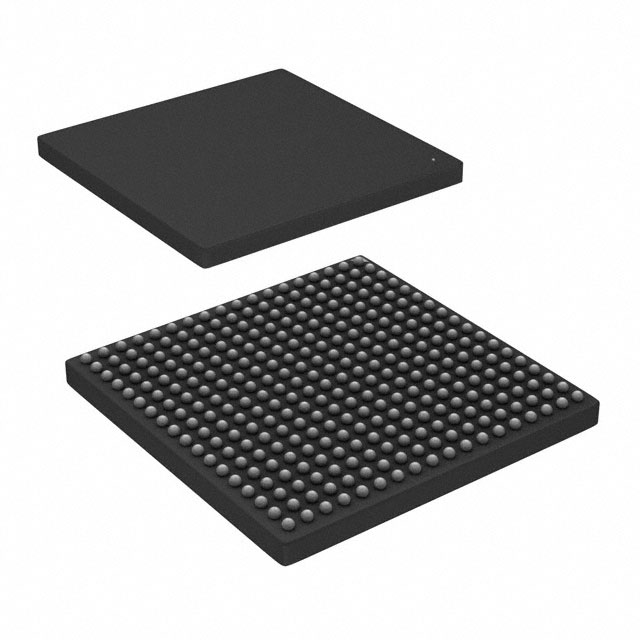

The XC7S50-L1CSGA324I is a Field Programmable Gate Array (FPGA) belonging to the Spartan-7 family, manufactured by AMD. It features 8150 Adaptive Logic Modules (ALMs), 2.64 Mbit of embedded memory, and 210 I/O pins. The device operates at a nominal voltage of 1 V, with a range of 950 mV to 1.05 V. It supports Commercial temperature grades from 0°C to 100°C and utilizes a CSGA-324 surface-mount package.

Field Programmable Gate Array Feature Summary

• Supports high-density logic implementation within a compact form factor
• Integrates substantial embedded memory for data buffering and processing
• Provides extensive I/O capabilities for diverse peripheral connectivity

Field Programmable Gate Array Applications

• Industrial automation control systems
• Consumer electronics interface design
• Embedded signal processing applications

Field Programmable Gate Array Procurement Notes

Verify the specific speed grade suffix 'L1' against official AMD documentation to confirm timing characteristics. Ensure the industrial or commercial temperature rating aligns with the target application environment. Confirm the CSGA-324 package dimensions match the PCB footprint requirements before finalizing procurement.

Field Programmable Gate Array Selection Notes

Select this component when moderate logic density and cost efficiency are prioritized over high-speed transceivers. Compare resource utilization against the XC7S50-2 variant if higher performance speeds are required. Evaluate power consumption profiles relative to system thermal constraints during initial design phases.

Field Programmable Gate Array Part Context

This part belongs to the Spartan-7 series, designed for cost-sensitive applications requiring reliable programmable logic. It serves as an entry-level solution for designs needing moderate complexity without the overhead of higher-tier Artix or Kintex families.

Field Programmable Gate Array Replacement Considerations

Direct substitutes include other Spartan-7 devices with equivalent ALM counts and pin compatibility. Verify package integrity and electrical specifications when considering cross-references from different manufacturers.
