Product Detailed Parameters
- Description：IC INVERTER
- Series：*
- Mfr：Nexperia USA Inc.
- Package：Bulk
- Logic Type：-
- Number of Circuits：-
- Number of Inputs：-
- Features：-
- Voltage - Supply：-
- Current - Quiescent (Max)：-
- Current - Output High, Low：-
- Input Logic Level - Low：-
- Input Logic Level - High：-
- Max Propagation Delay @ V, Max CL：-
- Operating Temperature：-
- Mounting Type：-
- Supplier Device Package：-
- Package / Case：-
- Grade：-
- Qualification：-
Download product information
Overview

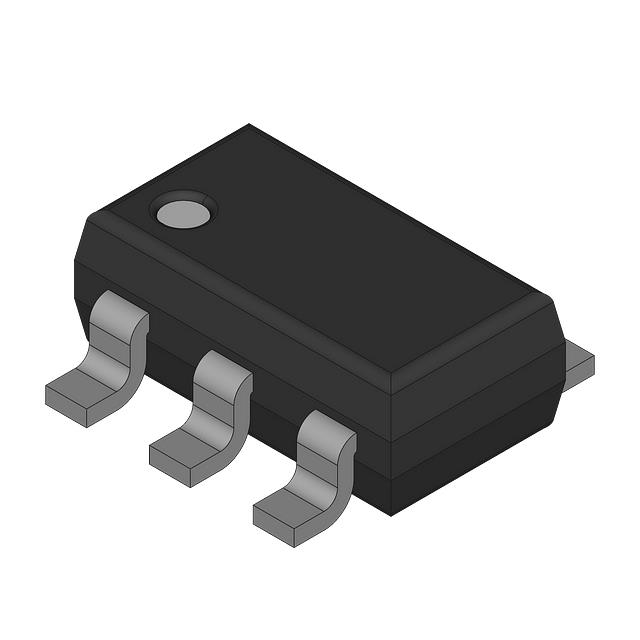

The XC7WH14GT,115 is a high-speed Si-gate CMOS device manufactured by Nexperia USA Inc. It functions as an inverting buffer with Schmitt trigger action, transforming slowly changing input signals into sharply defined, jitter-free output signals. The component operates within a supply voltage range of 2 V to 5.5 V and supports a wide operating temperature range from -40 °C to +125 °C. It features low power dissipation, balanced propagation delays, and high noise immunity. The device includes ESD protection exceeding 2000 V (HBM) and 1000 V (CDM). It is housed in an 8-XSON package.
Feature Summary
- Provides inverting buffer functionality with Schmitt trigger action for signal conditioning
- Features high noise immunity and symmetrical output impedance
- Includes robust ESD protection compliant with ANSI/ESDA/JEDEC standards
Applications
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
Procurement Notes
Verify the specific suffix '115' against official Nexperia documentation to confirm the exact tape-and-reel packaging configuration and marking details. Ensure compatibility with surface-mount assembly processes suitable for the XSON package type. Cross-reference the full ordering code with manufacturer databases to validate current production status and availability channels.
Selection Notes
Select this component when application requirements demand precise signal shaping with hysteresis to eliminate noise-induced glitches. The CMOS technology offers low static power consumption suitable for battery-operated systems. Verify that the 2 V to 5.5 V supply range aligns with system voltage rails and that the XSON footprint fits the PCB layout constraints.
Part Context
This part belongs to the Nexperia XC7W series of high-speed CMOS logic devices. The series is designed for applications requiring fast switching speeds and low power dissipation. The XC7WH14 variant specifically integrates Schmitt triggers to handle slow-rise-time inputs effectively, distinguishing it from standard inverters lacking hysteresis.
Replacement Considerations
Direct substitutes include other Nexperia XC7WH14 variants with different packaging options, such as XC7WH14DP or XC7WH14GV, provided the pinout and electrical characteristics remain compatible with the existing design.
