XCKU060-2FFVA1517I

Field Programmable Gate Array Overview

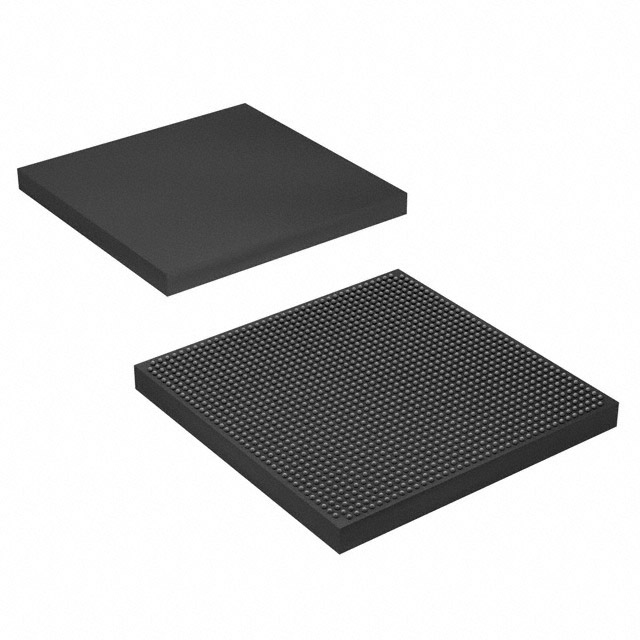

The XCKU060-2FFVA1517I is a Kintex UltraScale Field Programmable Gate Array manufactured by AMD. It features 725,550 logic elements and 41,460 Adaptive Logic Modules within an FCBGA-1517 package. The device integrates 38 Mbit of embedded block RAM and 9.1 Mbit of distributed RAM. It supports up to 624 I/Os and includes 32 high-speed transceivers capable of data rates up to 16.3 Gb/s. Operating at a typical voltage of 850 mV with a range of 922 mV to 979 mV, it functions reliably between -40°C and +100°C.

Field Programmable Gate Array Feature Summary

• Integrates 32 high-speed serial transceivers for multi-gigabit data transmission
• Provides extensive programmable logic resources via Adaptive Logic Modules
• Includes substantial on-chip memory capacity for data buffering and processing

Field Programmable Gate Array Applications

• High-performance digital signal processing implementations
• Multi-channel communication network infrastructure equipment
• Real-time video processing and display systems

Field Programmable Gate Array Procurement Notes

Verify the specific speed grade suffix and package designation against official AMD documentation before procurement. Confirm that the industrial temperature rating aligns with environmental requirements. Ensure compliance with export control regulations applicable to this component class. Validate authenticity through authorized distribution channels to mitigate counterfeit risks.

Field Programmable Gate Array Selection Notes

Compare resource utilization against project requirements to ensure adequate logic and memory availability. Evaluate thermal management solutions given the power density of the 20nm process technology. Assess PCB layout constraints imposed by the 1517-ball FCBGA footprint. Verify compatibility with existing clocking and I/O standards required by the system architecture.

Field Programmable Gate Array Part Context

This component belongs to the Kintex UltraScale family, positioned as a mid-to-high-end FPGA solution. It utilizes 20nm process technology to balance performance and cost. The series targets applications requiring significant parallel processing capabilities without the extreme density of Virtex devices.

Field Programmable Gate Array Replacement Considerations

Consult official AMD substitution guides for verified compatible part numbers. Consider variants within the same speed grade and package family. Verify pinout and electrical parameter compatibility before implementing any alternative components.
