XCKU5P-L2FFVB676E

Field Programmable Gate Array Overview

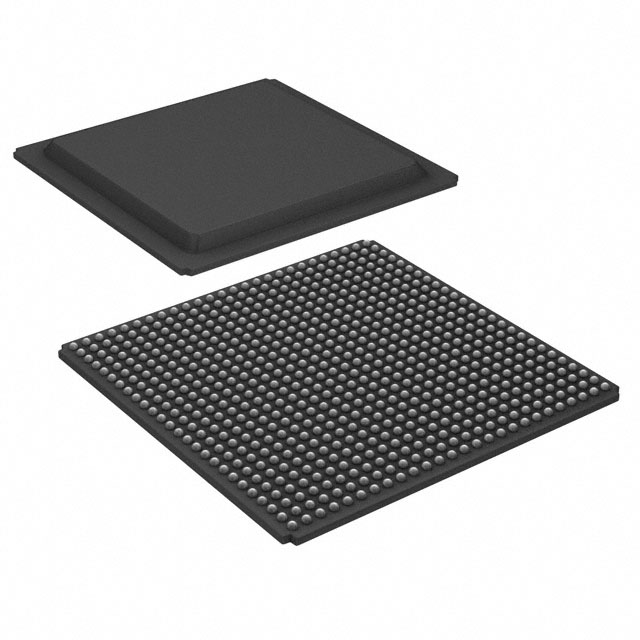

The XCKU5P-L2FFVB676E is a Kintex UltraScale+ Field Programmable Gate Array manufactured by AMD. It features 474,600 logic elements and 27,120 Adaptive Logic Modules within a 676-ball FBGA package. The device includes 16.9 Mbit of embedded memory and supports data rates up to 16.3 Gb/s via its transceivers. Operating voltage ranges from 850 mV minimum to maximum, with an operating temperature range of 0°C to +110°C.

Field Programmable Gate Array Feature Summary

• Integrates high-density logic resources for complex parallel processing tasks
• Supports high-speed serial communication through dedicated transceiver channels
• Utilizes advanced packaging for compact board layout integration

Field Programmable Gate Array Applications

• High-performance computing acceleration
• Industrial automation control systems
• Data center network infrastructure

Field Programmable Gate Array Procurement Notes

Verify the specific speed grade suffix against project timing requirements before ordering. Confirm that the commercial temperature range meets environmental specifications. Ensure compatibility with existing PCB footprints and power delivery networks. Check current availability status as lead times may vary significantly for this component type.

Field Programmable Gate Array Selection Notes

Select this model when moderate logic density combined with reliable I/O capabilities is required. Compare resource utilization against design complexity to ensure efficient usage of ALMs and memory blocks. Consider thermal management solutions suitable for the specified operating temperature range during system design.

Field Programmable Gate Array Part Context

This component belongs to the Kintex UltraScale+ series, positioned between lower-cost Artix devices and higher-end Virtex families. It targets applications requiring balanced performance and cost efficiency. The part number indicates a specific speed grade and package variant within the broader KU5P product line.

Field Programmable Gate Array Replacement Considerations

Direct substitutes include other speed grades within the XCKU5P family such as XCKU5P-2FFVB676E or XCKU5P-3FFVB676E if timing constraints allow. Verify pin-to-pin compatibility and electrical characteristics before swapping.
