Product Detailed Parameters
- Description：MOSFET N/P-CH 16V 3.5A SOT26
- Series：XP2531
- Mfr：YAGEO XSEMI
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：MOSFET (Metal Oxide)
- Configuration：N and P-Channel
- FET Feature：-
- Drain to Source Voltage (Vdss)：16V
- Current - Continuous Drain (Id) @ 25°C：3.5A (Ta), 2.5A (Ta)
- Rds On (Max) @ Id, Vgs：58mOhm @ 3A, 4.5V
- Vgs(th) (Max) @ Id：1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：12nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds：585pF @ 10V
- Power - Max：1.14W (Ta)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：SOT-23-6
- Supplier Device Package：SOT-26
- Grade：-
- Qualification：-
Download product information
Overview

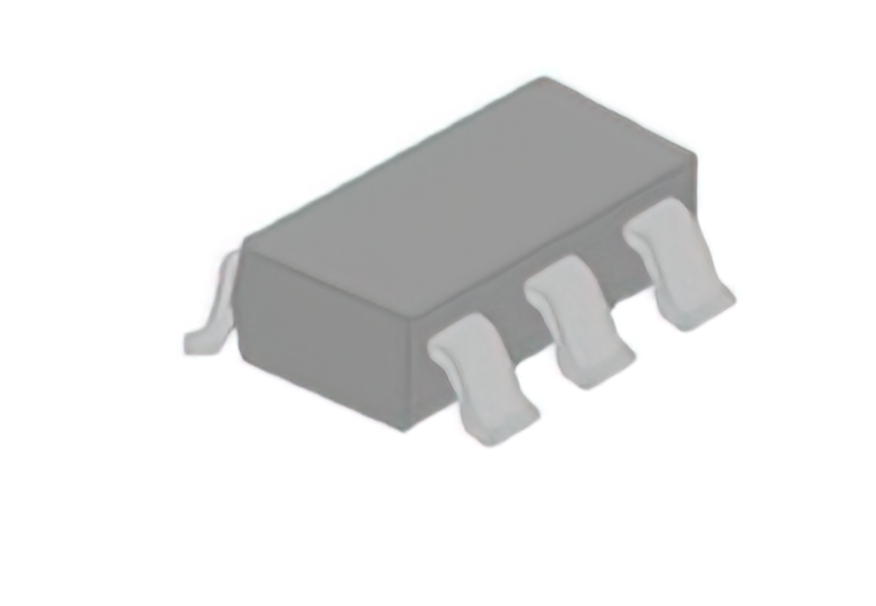

The XP2531GY is a dual MOSFET array manufactured by YAGEO XSEMI, integrating one N-channel and one P-channel enhancement-mode transistor within a single SOT-26 surface-mount package. The device supports a drain-source voltage of 16V with continuous current ratings of 3.5A for the N-channel and 2.5A for the P-channel. It features a maximum power dissipation of 1.14W at ambient temperature and operates reliably across an extended temperature range from -55°C to +150°C.
Feature Summary
- Integrates complementary N-channel and P-channel transistors in a compact SOT-26 package
- Supports high-temperature operation up to 150°C for automotive and industrial environments
- Optimized for low-voltage switching applications with enhanced thermal stability
Applications
- Automotive electronic control units
- Industrial motor driver circuits
- Power management modules
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the received parts match the specified SOT-26 package and electrical characteristics. Ensure compliance with RoHS standards and check for any specific handling requirements related to electrostatic discharge protection during storage and assembly processes.
Selection Notes
Select this component when space-constrained designs require integrated dual-channel switching capabilities. The SOT-26 footprint offers a compact alternative to discrete solutions. Consider the distinct current ratings for each channel to ensure adequate capacity for both high-side and low-side switching tasks within the target application circuit.
Part Context
This part belongs to the XP series of discrete semiconductor products designed by YAGEO XSEMI. The company specializes in analog and power semiconductors tailored for demanding sectors such as automotive and industrial electronics. This specific model represents a solution for efficient power switching in modern electronic systems.
Replacement Considerations
Consult official YAGEO XSEMI documentation for verified substitute part numbers. Cross-reference pinout configurations and electrical parameters carefully before substituting with generic equivalents to ensure functional compatibility.
