YFF15PC0G105MT000N

Overview

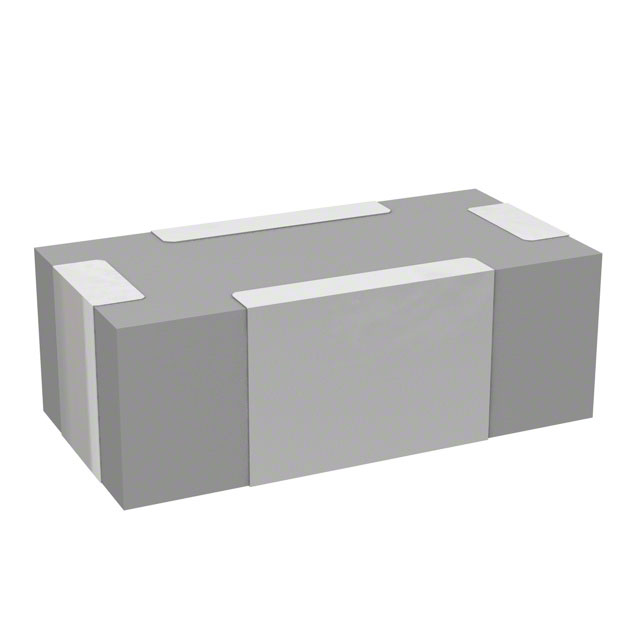

The TDK YFF15PC0G105MT000N is a three-terminal feedthrough filter capacitor from the YFF-P series, designed for surface-mount applications. It features a capacitance of 1 µF with a ±20% tolerance and a rated voltage of 4V DC. The component utilizes C0G dielectric material and operates within a temperature range of -55°C to +125°C. Housed in a compact 0402 (1005 Metric) package measuring 1.00mm x 0.55mm x 0.30mm, it offers a maximum DC resistance of 12 mOhms and supports a current rating of 3A.

Feature Summary

• Provides broadband EMI suppression up to the GHz range for effective noise filtering
• Designed for high-current signal line applications with low impedance characteristics
• Utilizes C0G dielectric for stable performance across wide temperature variations

Applications

• Power line filtering in compact electronic devices
• High-frequency noise suppression in signal lines
• EMI mitigation in mobile communication equipment

Procurement Notes

Verify the specific voltage rating and package dimensions against the official TDK datasheet before integration. Confirm that the 4V DC rating and 3A current capacity align with the target circuit requirements. Ensure compatibility with standard 0402 footprint layouts and reflow soldering profiles specified by the manufacturer.

Selection Notes

Select this component when broadband EMI suppression is required in space-constrained designs. The 1 µF capacitance and 4V rating suit low-voltage signal lines. Consider the 12 mOhm DCR and 3A current handling for power integrity. The 0402 package enables dense PCB layouts while maintaining high-performance filtering capabilities.

Part Context

This part belongs to the TDK YFF-P series of three-terminal feedthrough filters. These components are engineered as high-performance EMC solutions for power and signal lines. The series emphasizes compact form factors combined with superior attenuation characteristics across broad frequency bands, addressing modern miniaturization demands.

Replacement Considerations

Consult the official TDK replacement guide or datasheet for verified substitute part numbers. Cross-referencing requires matching capacitance, voltage, package size, and electrical characteristics to ensure functional equivalence without compromising circuit performance.
