YFF21SC1E223MT000N

Overview

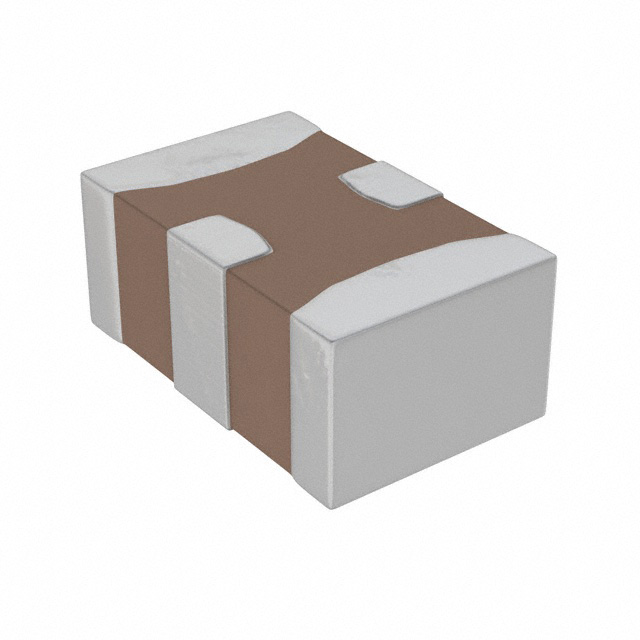

The TDK YFF21SC1E223MT000N is a feedthrough capacitor from the YFF-SC series, designed for electromagnetic interference suppression. It features a capacitance of 0.022 µF with ±20% tolerance and a rated voltage of 25V DC. The component supports a maximum DC current of 2 A and has a maximum DC resistance of 80 mΩ. It provides an insertion loss of 30dB across the 10MHz to 2GHz frequency range. Housed in a surface-mount 0805 (2012 Metric) package with four PCB pads, it operates within a temperature range of -55°C to +125°C.

Feature Summary

• Provides high-frequency electromagnetic interference suppression through feedthrough architecture
• Supports high continuous DC current handling capabilities
• Designed for surface-mount integration in compact electronic assemblies

Applications

• High-power motor control cabinets
• Switching power supply input/output filtering
• General-purpose EMI suppression in consumer electronics

Procurement Notes

This component is officially classified as obsolete and no longer manufactured by TDK Corporation. Procurement must rely on existing stock or authorized distributors holding legacy inventory. Verification of part authenticity and storage history is critical due to the end-of-life status. Buyers should confirm the specific revision and packaging condition before acquisition to ensure compatibility with current production requirements.

Selection Notes

Engineers replacing this obsolete part should evaluate the KYOCERA AVX W2F15C2238AT1A as a documented alternative. Selection criteria must match the original 0.022 µF capacitance, 25V rating, and 0805 footprint. Verify that the substitute maintains comparable insertion loss performance and current handling specifications to ensure circuit integrity without redesigning the filter network.

Part Context

The YFF-SC series represents TDK's line of ceramic feedthrough filters optimized for high-current applications. These components utilize a coaxial structure to minimize parasitic inductance, enhancing high-frequency noise attenuation. The YFF21SC1E223MT000N specifically targets scenarios requiring robust EMI filtering alongside significant DC load carrying capacity in space-constrained surface-mount designs.

Replacement Considerations

The KYOCERA AVX W2F15C2238AT1A is a confirmed public substitute for this obsolete part. Ensure mechanical fitment matches the 0805 package dimensions and verify electrical parameters align with system requirements.

FAQ

What is the insertion loss specification for this feedthrough capacitor?

The component provides an insertion loss of 30dB within the frequency range of 10MHz to 2GHz.

Is this component suitable for high-temperature environments?

Yes, the device is rated for operation in temperatures ranging from -55°C to +125°C.
