ZRC102D

Overview

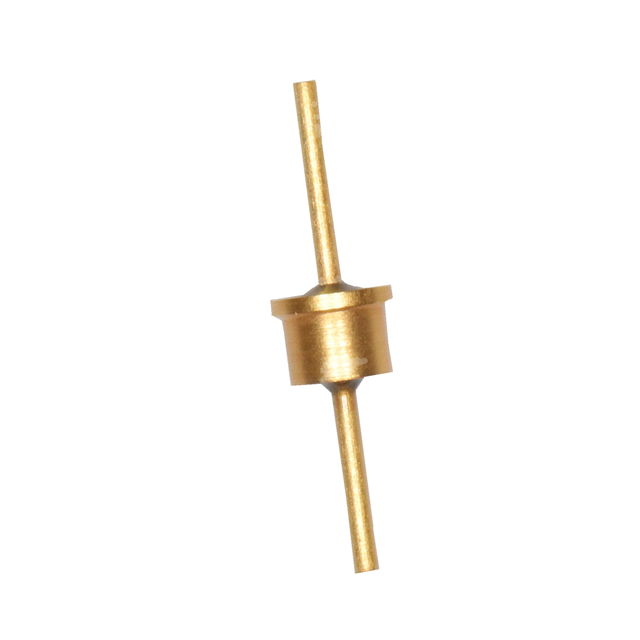

The ZRC102D is a feed-through capacitor manufactured by EMI Filter Company, designed for high-frequency noise suppression. It features a capacitance of 1000 pF with a rated voltage of 200 VDC and a current rating of 10 A. The component utilizes an axial bushing package configuration. It operates within a temperature range of -55°C to 125°C and exhibits an insertion loss of 20 dB at 100 MHz. The device belongs to the DSH series and employs X7R temperature coefficient characteristics.

Feature Summary

• Provides effective high-frequency interference filtering through feed-through capacitor architecture
• Supports continuous current loads up to 10 Amperes
• Operates reliably across extreme temperatures from -55°C to 125°C

Applications

• RF and microwave circuit noise suppression
• Power line filtering in electronic equipment
• Signal integrity protection in sensitive circuits

Procurement Notes

Verify the specific tolerance requirements, as sources indicate variations between 0% and +100%. Confirm the exact package style matches the application needs, noting descriptions include both axial and bushing configurations. Ensure the 200V DC rating aligns with the system voltage. Check current availability status as stock levels fluctuate among distributors.

Selection Notes

Select this component when a compact feed-through solution is required for frequencies around 100 MHz. The 1000 pF value suits applications needing moderate capacitance with low impedance paths for high-frequency noise. Consider the 10 A current capacity for power lines. Verify thermal stability requirements against the X7R characteristic and operating temperature range.

Part Context

This part belongs to the ZR "C" circuit series by EMI Filter Company. It is categorized under feed-through capacitors, distinct from standard surface-mount or through-hole components. The design integrates the capacitor directly into the mounting structure, providing superior high-frequency performance compared to conventional filters.

Replacement Considerations

No verified public substitute part numbers are available in the provided documentation.
