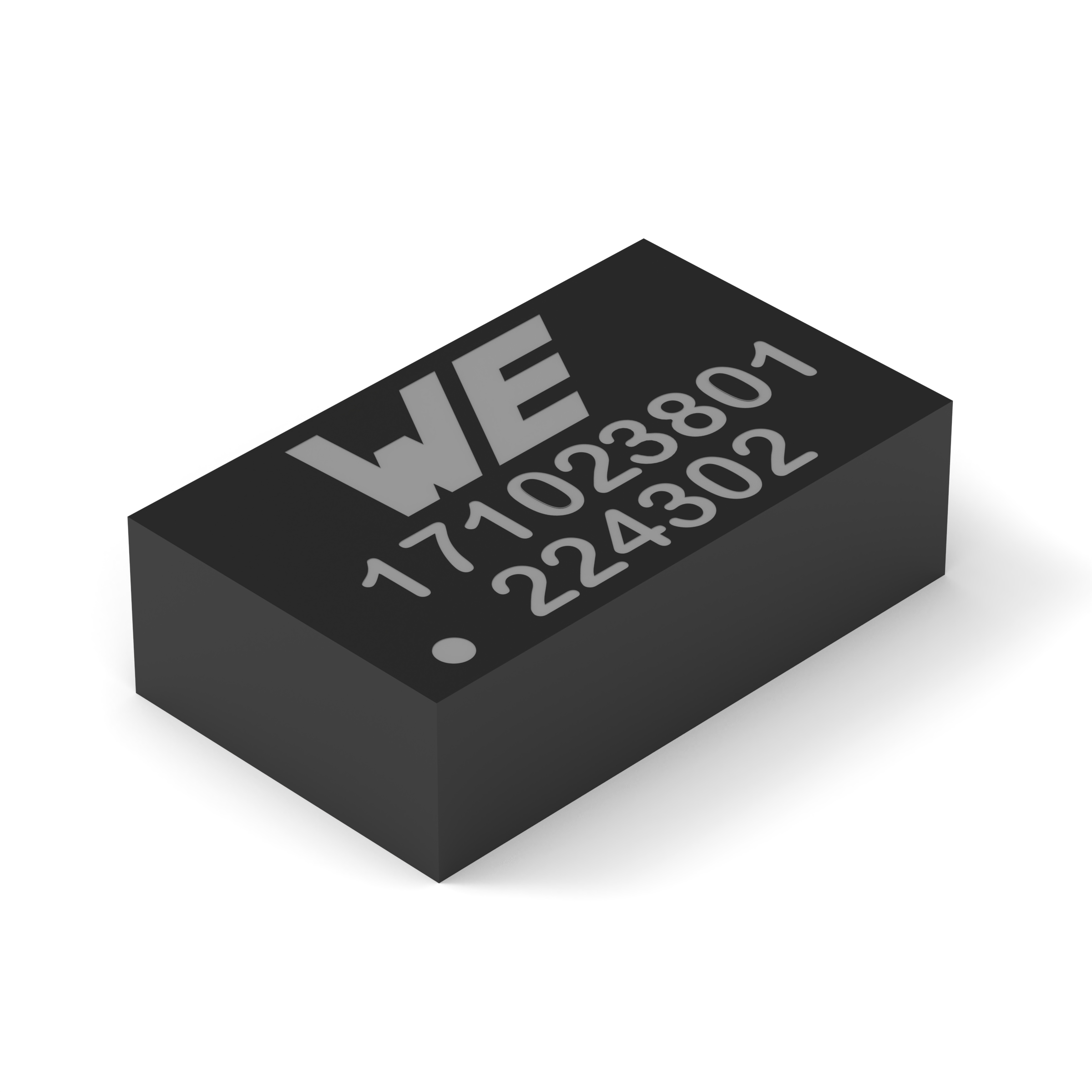

171023801

171023801 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is WPME-VDLM VARIABLE STEP DOWN REG. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 171023801

• Description：WPME-VDLM VARIABLE STEP DOWN REG
• Series：MagI³C, VDLM
• Mfr：Würth Elektronik
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：3.5V
• Voltage - Input (Max)：38V
• Voltage - Output 1：0.85 ~ 13V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 105°C
• Efficiency：96%
• Mounting Type：Surface Mount
• Package / Case：12-LGA Exposed Pad
• Size / Dimension：0.39" L x 0.24" W x 0.12" H (10.0mm x 6.0mm x 3.1mm)
• Supplier Device Package：12-LGA (10x6)
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 171023801
