2N7002E-Q1-H

$0.01

Description：60V N-Channel Enhancement Mode M
Series：*
Mfr：Formosa Microsemi Co., Ltd.
Package：Tape & Reel (TR)

SKU:768087464edc Category: Single FETs, MOSFETs Brand: Formosa Microsemi Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：60V N-Channel Enhancement Mode M
Series：*
Mfr：Formosa Microsemi Co., Ltd.
Package：Tape & Reel (TR)
FET Type：-
Technology：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Drive Voltage (Max Rds On, Min Rds On)：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：-
Input Capacitance (Ciss) (Max) @ Vds：-
FET Feature：-
Power Dissipation (Max)：-
Operating Temperature：-
Grade：-
Qualification：-
Mounting Type：-
Supplier Device Package：-
Package / Case：-

Download product information

2N7002E-Q1-H

Overview

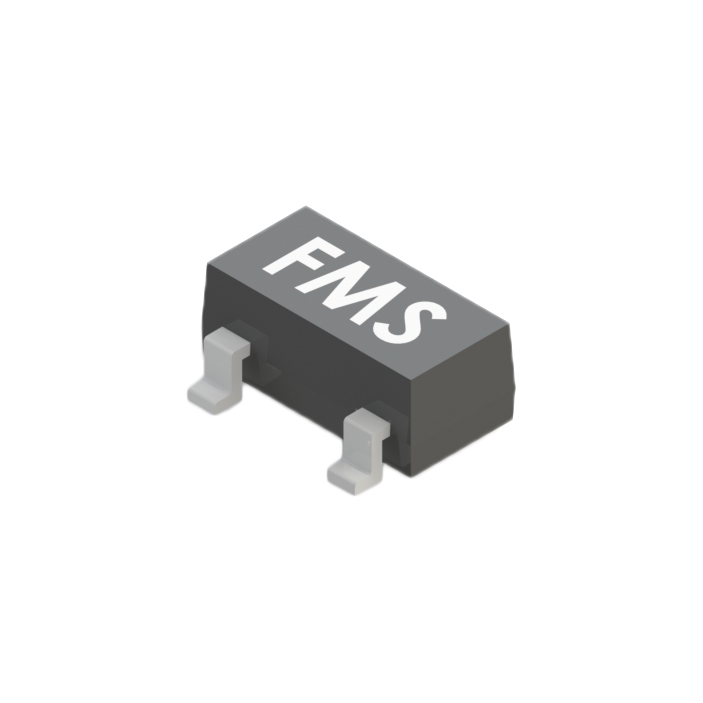

The Formosa MS 2N7002E-Q1-H is a 60V N-channel enhancement mode MOSFET in an SOT-23 package, qualified to AEC-Q101 standards. It features low on-resistance and ESD protection up to 2kV HBM. Key electrical parameters include a drain-source breakdown voltage of 60V, a maximum continuous drain current of 417mA at 25°C, and a typical RDS(on) of 1.5Ω at VGS=10V and ID=0.5A. The device supports a junction temperature range of -55°C to +150°C.

Feature Summary

Qualified to AEC-Q101 automotive reliability standards
Integrated ESD protection rated at 2kV HBM
Low on-resistance for efficient switching
Halogen-free construction

Applications

Low side load switch
Level shift circuits
DC DC converter
Portable applications such as DSC, PDA, and cell phones

Procurement Notes

Verify the specific suffix '-H' confirms halogen-free status when ordering. Confirm that the 'E-Q1' designation aligns with required AEC-Q101 automotive qualification levels. Ensure the SOT-23 package matches the PCB footprint design. Check datasheet revision history for any updates to thermal or electrical limits before finalizing designs.

Selection Notes

Select this component for applications requiring automotive-grade reliability in small surface-mount packages. The 60V rating suits low-voltage systems. Consider the 417mA continuous current limit for load capacity. Verify gate threshold voltage compatibility with the driving logic levels. Evaluate thermal performance based on the specified junction-to-ambient resistance.

Part Context

This part belongs to the 2N7002 family of N-channel MOSFETs manufactured by Formosa Microsemi. It is specifically engineered for high-reliability environments, distinguishing itself through AEC-Q101 certification. The SOT-23 package provides a compact solution for space-constrained portable and automotive electronics.

Replacement Considerations

Check for equivalent parts with matching AEC-Q101 qualification if supply is limited. Verify pinout compatibility (Gate, Source, Drain) with existing layouts. Ensure replacement devices meet the same 60V breakdown and current handling requirements.
