2N7002KW

$0.32

Description：MOSFET N-CH 60V 310MA SC70
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5631997e4fdc Category: Single FETs, MOSFETs Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N-CH 60V 310MA SC70
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：310mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)：5V, 10V
Rds On (Max) @ Id, Vgs：1.6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id：2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：50 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：350mW (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：SOT-323

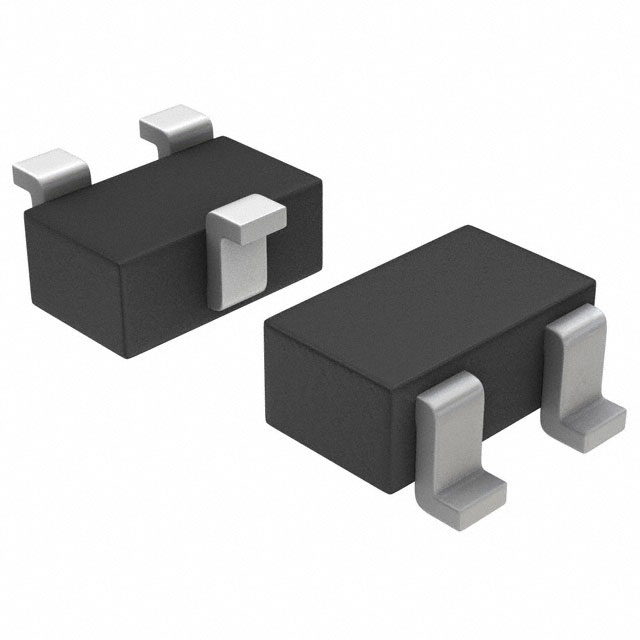

Package / Case：SC-70, SOT-323

Download product information

2N7002KW

Overview

The onsemi 2N7002KW is a single N-channel enhancement-mode MOSFET designed for surface-mount applications. It features a maximum drain-source voltage of 60 V and a continuous drain current of 310 mA. The device utilizes an SOT-323-3 package with dimensions of 2.10 mm by 1.25 mm. Key electrical characteristics include a maximum on-resistance of 3 Ohms, a gate-source voltage limit of ±20 V, and a power dissipation rating of 300 mW. It operates within a temperature range of -55°C to +150°C.

Feature Summary

Single N-channel enhancement-mode configuration
Logic-level switching capability
ESD protection via gate-source clamping diode

Applications

Battery management systems
Signal switching circuits
Load control applications

Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact electrical tolerances and packaging variations. Ensure the component matches the required SOT-323 footprint and thermal specifications for the target design. Cross-reference datasheet parameters directly with supplier certificates to validate authenticity and performance consistency.

Selection Notes

Select this component when a compact N-channel switch is required for low-current logic-level applications. The SOT-323 package offers space efficiency compared to larger alternatives. Evaluate the 3 Ohm on-resistance against circuit loss requirements. Confirm that the 310 mA current rating aligns with the intended load profile.

Part Context

This part belongs to the 2N7002 family of general-purpose N-channel MOSFETs. It serves as a surface-mount variant optimized for modern PCB layouts. The device provides a reliable solution for small-signal switching tasks in consumer electronics and industrial control modules.
