2SA2031

$0.37

Description：TRANS PNP 230V 15A TO-3PB
Series：-

SKU:806a8e3b3eff Category: Single Bipolar Transistors Brand: Sanyo

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2SA2031 is listed in the Single Bipolar Transistors range at ChipApex. The manufacturer field lists Sanyo. Its product description is TRANS PNP 230V 15A TO-3PB. Review the specifications below when checking this part for your BOM.

Single Bipolar Transistors specifications for 2SA2031

Description：TRANS PNP 230V 15A TO-3PB
Series：-
Mfr：Sanyo
Package：Bulk
Transistor Type：PNP
Current - Collector (Ic) (Max)：15 A
Voltage - Collector Emitter Breakdown (Max)：230 V
Vce Saturation (Max) @ Ib, Ic：2V @ 750mA, 7.5A
Current - Collector Cutoff (Max)：100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce：60 @ 1A, 5V
Power - Max：2.5 W
Frequency - Transition：10MHz
Operating Temperature：150°C (TJ)
Mounting Type：Through Hole

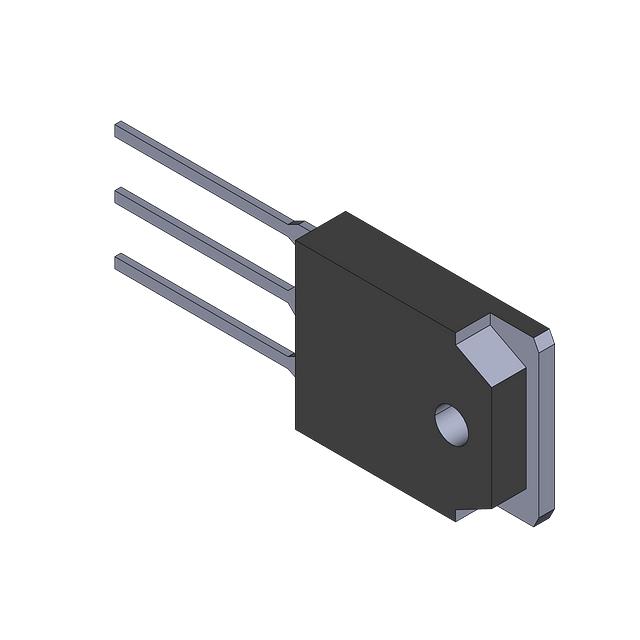

Package / Case：TO-3P-3, SC-65-3
Supplier Device Package：TO-3PB
Grade：-
Qualification：-

Single Bipolar Transistors datasheet and documents for 2SA2031

2SA2031

Single Bipolar Transistors Overview

The Sanyo 2SA2031 is a silicon PNP power transistor designed for amplifier applications. It features a TO-3PB flange mount package with three through-hole terminals. The device supports a maximum collector current of 15 A and a collector-emitter voltage rating of 230 V. It has a minimum DC current gain (hFE) of 35 and a nominal transition frequency of 10 MHz.

Single Bipolar Transistors Feature Summary

PNP polarity configuration for power amplification
TO-3PB plastic/epoxy flange mount housing
Through-hole terminal arrangement

Single Bipolar Transistors Applications

Amplifier circuits

Single Bipolar Transistors Procurement Notes

Verify the manufacturer designation, as the component is listed under Rochester Electronics in available records. Confirm the specific package variant matches the TO-3PB requirement. Ensure the silicon PNP specification aligns with the circuit design needs before integration.

Single Bipolar Transistors Selection Notes

Select this component for high-current PNP switching or linear amplification tasks requiring robust thermal dissipation via the flange mount. The 230V rating suits moderate voltage applications. Verify compatibility with existing board layouts for the TO-3PB footprint.

Single Bipolar Transistors Part Context

This part belongs to the discrete semiconductor transistor category. It is classified specifically as a power transistor intended for commercial use. The documentation indicates it is a single-element device within the broader family of silicon-based electronic components.
