2SB11560P

Single Bipolar Transistors Overview

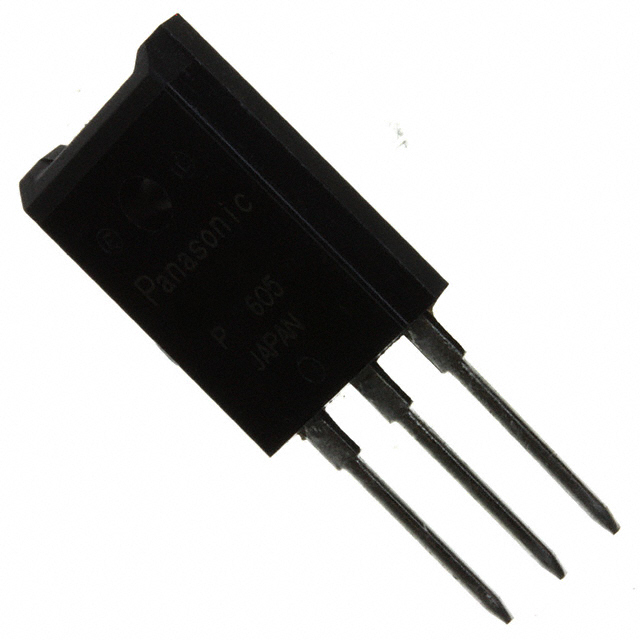

The Panasonic 2SB11560P is a silicon PNP epitaxial planar power transistor designed for high-current switching applications. It features a maximum collector current of -20 A and a peak collector current of -30 A, with a collector-emitter voltage rating of -80 V. The device offers low collector-emitter saturation voltage and satisfactory linearity in its forward current transfer ratio (hFE). Packaged in the TOP-3F-A1 format, it supports a junction temperature up to 150°C and complies with RoHS directives.

Single Bipolar Transistors Feature Summary

• Low collector-emitter saturation voltage for efficient power switching
• Satisfactory linearity of forward current transfer ratio hFE
• Full-pack package design allowing heat sink installation with one screw

Single Bipolar Transistors Applications

• General electronic equipment
• Office equipment
• Communications equipment
• Measuring instruments
• Household appliances

Single Bipolar Transistors Procurement Notes

Verify the specific ordering suffix against official documentation before procurement. Confirm the active lifecycle status, as maintenance or discontinuation notices may apply. Ensure compliance with export control regulations if applicable. Consult the manufacturer for the most up-to-date product standards prior to finalizing purchase orders.

Single Bipolar Transistors Selection Notes

Select this component for standard applications requiring high collector current handling and robust thermal management. Consider the TOP-3F-A1 package for ease of mounting to heat sinks. Evaluate the transition frequency and switching times against circuit requirements. Verify that the operating conditions remain within the absolute maximum ratings to prevent device failure.

Single Bipolar Transistors Part Context

This part belongs to the 2SB series of silicon PNP transistors manufactured by Panasonic Electronic Components. It serves as a complementary device to the 2SD1707 NPN transistor. The component is engineered for general-purpose power switching tasks within standard electronic systems.
