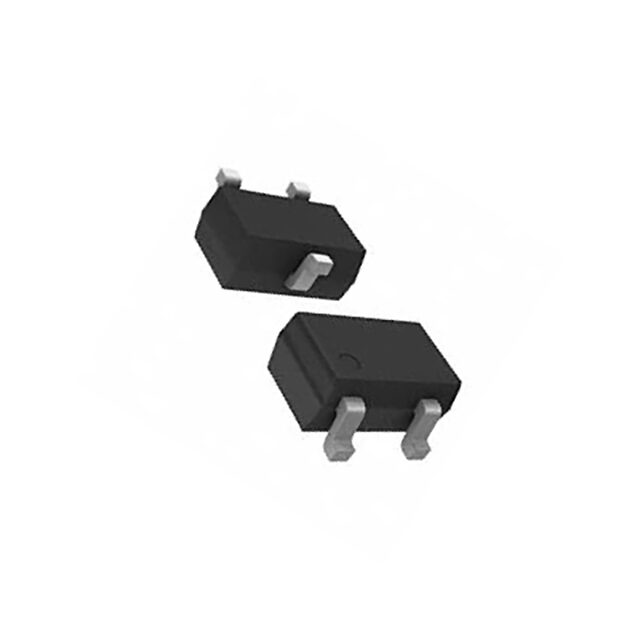

2SC2712-G

Single Bipolar Transistors Overview

The 2SC2712-G is an NPN audio frequency amplifier transistor manufactured by Shenzhen SLKORMicro Semicon Co., Ltd. It belongs to the 2SC2712 series, designed for general-purpose amplification tasks in consumer electronics and audio equipment. The component utilizes a standard through-hole or surface-mount package configuration suitable for PCB integration. As part of the broader 2SC2712 family, it shares core electrical characteristics with variants such as -L, -O, -X, -Y, and -G suffixes, which primarily differ in tape-and-reel packaging specifications rather than intrinsic semiconductor performance parameters.

Single Bipolar Transistors Feature Summary

• NPN bipolar junction transistor architecture optimized for audio frequency signal amplification
• Designed for use in low-power consumer electronic circuits and audio processing applications
• Part of a standardized series offering multiple packaging options for flexible board layout

Single Bipolar Transistors Applications

• Audio frequency amplifier stages in consumer electronics
• General-purpose signal amplification in small-signal circuits
• Integration into audio processing modules within home appliances

Single Bipolar Transistors Procurement Notes

Verify the specific suffix '-G' against the manufacturer's official datasheet to confirm packaging type and reel specifications. Ensure compatibility with existing PCB footprints and thermal management requirements. Cross-reference with authorized distributors to confirm authenticity and traceability, as generic listings may not reflect exact manufacturing lot details or regional compliance certifications required for your supply chain.

Single Bipolar Transistors Selection Notes

Select this component when an NPN transistor is required for audio frequency amplification within standard voltage and current limits. Compare the 2SC2712-G against other series members like -L or -X if specific reel packaging or tape dimensions are mandated by automated assembly equipment. Confirm that the thermal dissipation capabilities align with the target application's power constraints without requiring additional heatsinking infrastructure.

Single Bipolar Transistors Part Context

The 2SC2712-G is one variant within the extensive 2SC2712 product line produced by Shenzhen SLKORMicro Semicon Co., Ltd. This series includes multiple suffixes (-L, -O, -X, -Y) indicating different packaging or shipping configurations. The 'G' suffix typically denotes a specific tape-and-reel format or regional distribution batch. All variants share identical electrical performance profiles, ensuring interchangeability in circuit design while differing only in physical handling and storage logistics.

Single Bipolar Transistors Replacement Considerations

Direct substitutes include other 2SC2712 variants such as 2SC2712-L, 2SC2712-O, 2SC2712-X, and 2SC2712-Y from the same manufacturer, provided the packaging difference does not impact assembly processes. Generic replacements should match NPN audio amplifier specifications with comparable gain and frequency response characteristics.
