2SC536300L

Overview

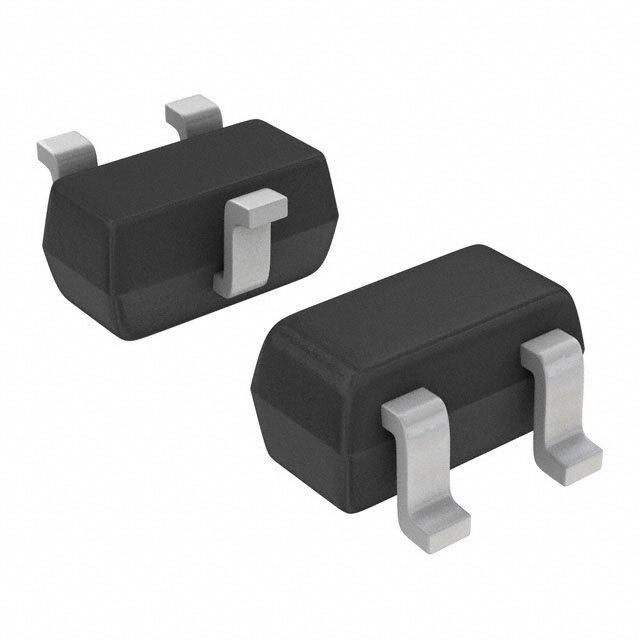

The Panasonic 2SC5363 is a silicon NPN epitaxial planar transistor designed for low-voltage high-frequency amplification. It features a transition frequency (fT) of up to 10 GHz at VCE = 3 V and IC = 10 mA, with a forward transfer gain (|S21e|²) of 6.5 dB at 0.9 GHz. The device operates within a collector-emitter voltage (VCEO) of 6 V and supports a maximum collector current of 30 mA. Power dissipation is rated at 125 mW, with a junction temperature limit of 125 °C. Packaged in the SS-Mini type SC-75 format, it offers small collector output capacitance (Cob) of 0.4 to 0.7 pF.

Feature Summary

• High transition frequency suitable for RF applications
• Small collector output capacitance for signal integrity
• SS-Mini package enabling downsizing and automatic insertion

Applications

• Low-voltage high-frequency amplification circuits
• General electronic equipment such as measuring instruments
• Communications equipment signal processing

Procurement Notes

Verify component authenticity through authorized distributors or official Panasonic channels. Confirm datasheet revisions match design requirements. Check lifecycle status as maintenance/discontinued items may have limited availability. Ensure proper handling procedures are followed during storage and assembly to prevent electrostatic discharge damage.

Selection Notes

Select this component when low-voltage operation and high-frequency performance are required. Consider the 6 V collector-emitter voltage limit and 30 mA current rating for circuit design. Evaluate thermal management needs given the 125 mW power dissipation capability. Verify compatibility with the SC-75 package footprint for PCB layout.

Part Context

The 2SC5363 belongs to Panasonic's lineup of silicon NPN epitaxial planar transistors. It is specifically engineered for low-voltage high-frequency amplification tasks. The device utilizes an SS-Mini type package to facilitate equipment miniaturization and automated manufacturing processes.

Replacement Considerations

Consult official Panasonic documentation for verified substitute part numbers. Cross-reference electrical parameters such as fT, VCEO, and package dimensions before substitution. Ensure replacement components meet the same safety and reliability standards for intended applications.
