2SC5658FHAT2LR

Single Bipolar Transistors Overview

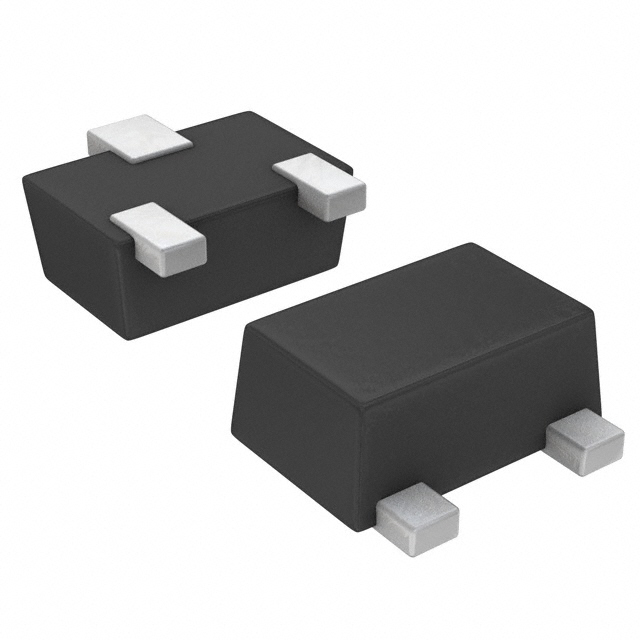

The 2SC5658FHAT2LR is an NPN general-purpose small signal amplifier manufactured by Rohm Semiconductor. It operates with a collector-emitter voltage of 50V and a maximum collector current of 150mA, housed in a VMT3 (SOT-723) surface-mount package. The device features a transition frequency of 180MHz and low output capacitance of 2.0pF typical. It is AEC-Q101 qualified for automotive applications and complements the 2SA2029 FHA PNP transistor.

Single Bipolar Transistors Feature Summary

• AEC-Q101 qualified for automotive reliability standards
• Low output capacitance of 2.0pF typical
• Designed to complement the 2SA2029 FHA PNP transistor

Single Bipolar Transistors Applications

• General purpose small signal amplification
• Automotive electronic circuits requiring AEC-Q101 compliance

Single Bipolar Transistors Procurement Notes

Verify the specific ordering suffix against official Rohm documentation to confirm packaging details such as tape width and reel size. Confirm that the component status aligns with project requirements, as availability may vary. Ensure storage conditions meet manufacturer guidelines to prevent solderability degradation before use.

Single Bipolar Transistors Selection Notes

Select this component for designs requiring a compact SOT-723 footprint with low parasitic capacitance. It serves as a matched pair partner to the 2SA2029 FHA. Verify thermal derating requirements for power dissipation within sealed enclosures or high ambient temperatures.

Single Bipolar Transistors Part Context

This part belongs to the 2SC5658 FHA series of general-purpose bipolar junction transistors. The series is characterized by its small signal amplification capabilities and automotive qualification. It is designed for surface-mount assembly using standard reflow soldering processes.

Single Bipolar Transistors Replacement Considerations

The 2SC5658T2LQ is listed as a direct substitute with identical pinout and package specifications.
