2SD1626-TD-E

Single Bipolar Transistors Overview

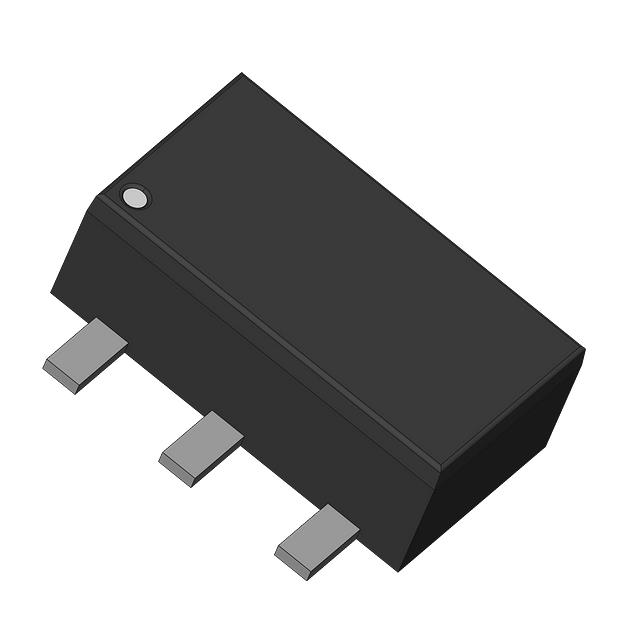

The onsemi 2SD1626-TD-E is a surface-mount NPN bipolar junction transistor in a PCP-3 package. It features a maximum collector-emitter voltage of 50V and a collector-base voltage of 60V. The device supports a maximum DC collector current of 1.5A with a minimum DC current gain (hFE) of 35. Power dissipation is rated at 500mW, and the transition frequency reaches 120MHz. Operating temperatures range from -55°C to 150°C, with physical dimensions of 4.5mm length and 1.5mm height.

Single Bipolar Transistors Feature Summary

• High DC current gain exceeding 4000 for efficient signal amplification
• Ultrasmall surface mount package facilitating automated assembly
• Robust current capacity suitable for driver applications

Single Bipolar Transistors Applications

• Relay drivers
• Hammer drivers
• Lamp drivers
• Motor drivers

Single Bipolar Transistors Procurement Notes

Verify the specific suffix against the manufacturer's official datasheet to confirm pinout and electrical characteristics match the design requirements. Ensure the component meets RoHS compliance standards if required by the target market regulations. Cross-reference the ordering number with authorized distributors to guarantee authenticity and traceability of the silicon material.

Single Bipolar Transistors Selection Notes

Select this component for circuits requiring high current gain in compact form factors. The 50V rating suits low-voltage switching tasks. Consider thermal management due to the small package size. Compare against similar NPN transistors in the 2SD162x series for alternative sourcing options while maintaining identical functional parameters.

Single Bipolar Transistors Part Context

This part belongs to the 2SD1626 series of general-purpose NPN transistors designed for various driver applications. It complements other variants like the 2SD1624S and 2SD1628G within the manufacturer's portfolio, offering different current and voltage ratings to suit diverse circuit demands.

Single Bipolar Transistors Replacement Considerations

Direct substitutes include the 2SD1626-SCZ-TD-E variant. Verify pin compatibility and electrical limits before substitution.
