2SD17050P

Single Bipolar Transistors Overview

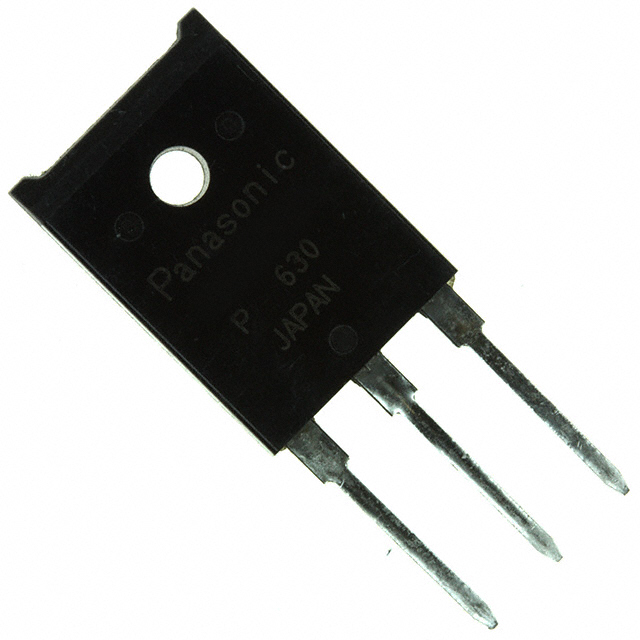

The Panasonic 2SD1705 is a silicon NPN epitaxial planar power transistor designed for switching applications. It features a maximum collector current of 10 A and peak current of 20 A, with a collector-emitter voltage rating of 80 V. The device dissipates up to 70 W at 25°C case temperature and operates within a junction temperature range of -55°C to +150°C. Key electrical characteristics include a low collector-emitter saturation voltage (VCE(sat)) of 1.5 V max at 10 A and a transition frequency (fT) of 20 MHz. It utilizes the TOP-3F-A1 package.

Single Bipolar Transistors Feature Summary

• Low collector-emitter saturation voltage for efficient power switching
• Satisfactory linearity of forward current transfer ratio across operating ranges
• Full-pack package design allowing direct heat sink installation via single screw

Single Bipolar Transistors Applications

• General electronic equipment
• Office equipment
• Communications equipment
• Measuring instruments
• Household appliances

Single Bipolar Transistors Procurement Notes

Verify component authenticity through authorized distributors or official Panasonic channels. Confirm compliance with RoHS Directive EU 2002/95/EC. Review latest product standards before mass production as specifications may change. Ensure proper handling procedures are followed to prevent electrostatic discharge damage during assembly.

Single Bipolar Transistors Selection Notes

Select this component for standard power switching tasks requiring high collector current capability. Consider thermal management requirements given the 70 W dissipation rating. Verify that the 80 V collector-emitter voltage meets circuit demands. Evaluate the TOP-3F-A1 package dimensions against available board space and mounting constraints.

Single Bipolar Transistors Part Context

This NPN transistor complements the Panasonic 2SB1154 PNP counterpart, facilitating push-pull configurations in amplifier and driver circuits. Manufactured using epitaxial planar technology, it offers robust performance for general-purpose electronics. The device adheres to JIS C 7030 measurement standards for transistor parameters.

Single Bipolar Transistors Replacement Considerations

Consult official Panasonic documentation for verified substitute part numbers. Cross-reference electrical ratings such as VCEO, IC, and PC when evaluating alternatives. Ensure pinout compatibility with the original TOP-3F-A1 package layout.

Single Bipolar Transistors FAQ

What is the complementary PNP transistor for the 2SD1705?

The 2SB1154 is the designated complementary PNP transistor.

How is the TOP-3F-A1 package mounted to a heat sink?

It is designed for installation using a single screw.

What is the maximum peak collector current?

The peak collector current (ICP) is rated at 20 A.
