2SD20640S

Single Bipolar Transistors Overview

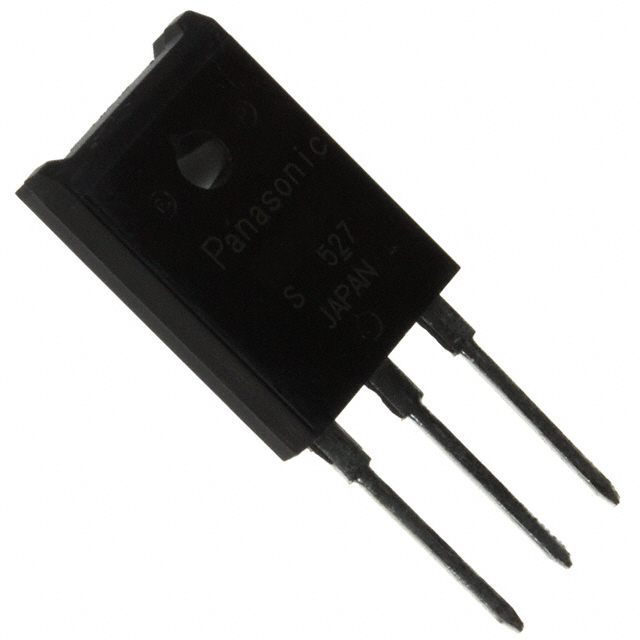

The Panasonic 2SD2064 is a silicon NPN triple diffusion planar power transistor designed for high-power amplification. It features a collector current of 6 A, peak collector current of 10 A, and collector-emitter voltage of 120 V. The device dissipates up to 70 W at 25°C with a junction temperature limit of 150°C. Forward current transfer ratio (hFE) ranges from 20 to 200 depending on the rank. Transition frequency is 20 MHz, and it utilizes an EIAJ SC-92 package.

Single Bipolar Transistors Feature Summary

• Triple diffusion planar construction for robust performance
• Wide safe operation area for reliable high-power handling
• High transition frequency suitable for demanding applications
• Full-pack package design allowing direct heat sink mounting

Single Bipolar Transistors Applications

• General electronic equipment
• Office equipment
• Communications equipment
• Measuring instruments
• Household appliances

Single Bipolar Transistors Procurement Notes

Verify component authenticity through authorized channels. Confirm RoHS compliance status as required by local regulations. Review the manufacturer's official website for the latest lifecycle stage information, including maintenance or discontinuation plans. Ensure all technical specifications align with your specific design requirements before finalizing procurement.

Single Bipolar Transistors Selection Notes

Select this component for standard applications requiring high-power amplification. Consider the hFE rank based on circuit gain requirements. Evaluate thermal management needs against the 70 W dissipation rating. Verify compatibility with existing heat sink designs due to the full-pack package style. Ensure operating conditions remain within absolute maximum ratings.

Single Bipolar Transistors Part Context

This NPN transistor belongs to Panasonic's power transistor lineup, intended for general-purpose high-power amplification. It serves as a complementary device to the 2SB1371 PNP transistor. The product adheres to the RoHS Directive and is manufactured using triple diffusion planar technology for enhanced reliability in standard electronic circuits.

Single Bipolar Transistors Replacement Considerations

Consult the manufacturer's official documentation for verified substitute part numbers. Cross-reference electrical parameters such as voltage, current, and package dimensions when evaluating alternatives.
