305-024-555-204

Edgeboard Connectors Overview

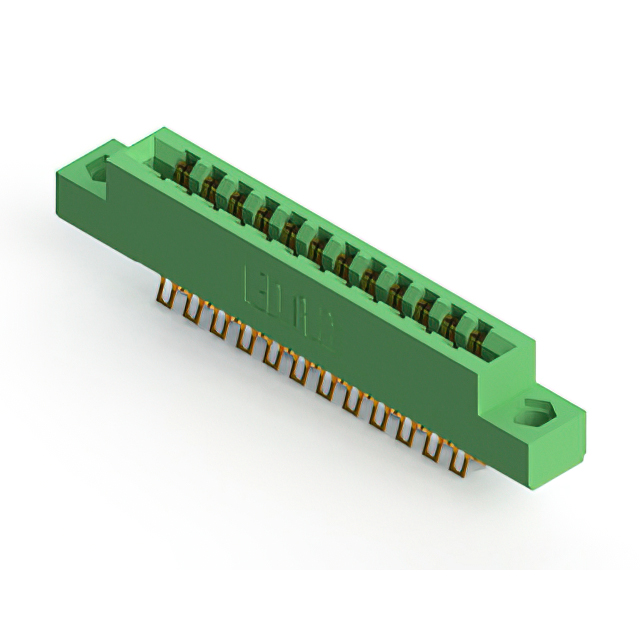

The EDAC Inc. 305-024-555-204 is a standard card edge connector from the 305 series, designed for panel mount applications. It features a dual row configuration with 24 positions and a contact pitch of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. The operating temperature range spans from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual row contact arrangement for high-density signal transmission
• Solder lug termination method ensures secure PCB mounting
• Gold-plated copper alloy contacts provide reliable conductivity
• Thermoplastic insulator body supports vertical installation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Automotive electronic control units

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact plating thickness, flange style, and material certifications. Ensure the selected variant matches the required board thickness tolerance and mounting orientation for the target assembly. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required for panel-mounted systems. The 5 A current rating and wide temperature range make it suitable for demanding environments. Confirm that the host PCB design accommodates the specified 1.57 mm thickness and that the solder lug termination aligns with the available board space.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options while maintaining consistent electrical performance. The 305 series is widely used in industrial and commercial applications requiring robust mechanical connections and reliable signal integrity across diverse environmental conditions.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mating cards and housing dimensions before considering alternative sources or generic equivalents.
