337-048-524-212

Edgeboard Connectors Overview

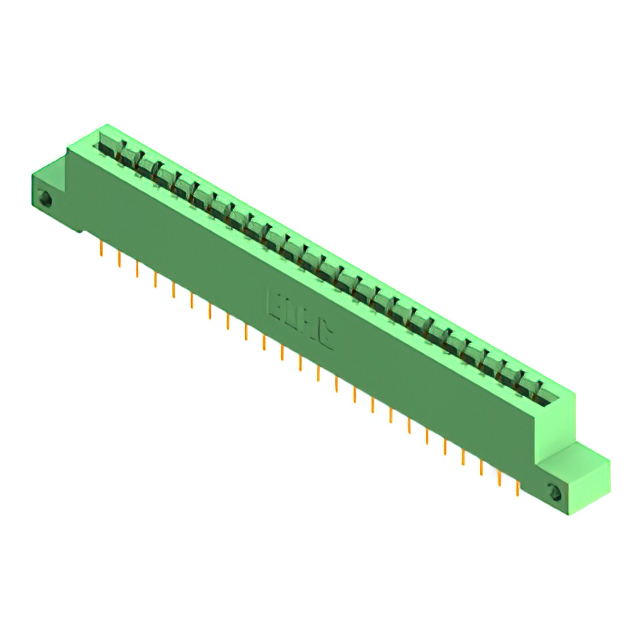

The EDAC Inc. part number 337-048-524-212 is a standard card edge connector socket designed for dual-edge board insertion. It features 48 positions with a contact spacing of 0.156 inches (3.96 mm). The housing is constructed from green thermoplastic polyester, and the contacts are gold-plated copper alloy. This component utilizes a through-hole mounting style with wire wrap termination. It is rated for a maximum operating temperature of +105°C and a minimum of -40°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board retention
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulator provides thermal stability
• Wire wrap termination supports robust circuit integration

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Medical device instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to confirm exact pin count, plating thickness, and termination type. Ensure compatibility with the target PCB trace width and board thickness specifications before finalizing procurement orders to prevent installation failures.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge connection is required for 48-position applications. Confirm that the system environment stays within the specified -40°C to +105°C operational range. Verify that the wire wrap termination method aligns with the assembly process capabilities and that the 3.96 mm pitch matches the design layout constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and mounting configurations. The 337-048 variant specifically addresses mid-range density requirements in industrial and commercial electronics, providing a standardized interface solution for modular board designs.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 337 series parts for alternative position counts or termination styles. Verify mechanical dimensions and electrical ratings against competitors' offerings if sourcing alternatives. Consult official substitution lists for direct equivalents.
