435-90-208-00-160000

Headers, Male Pins Overview

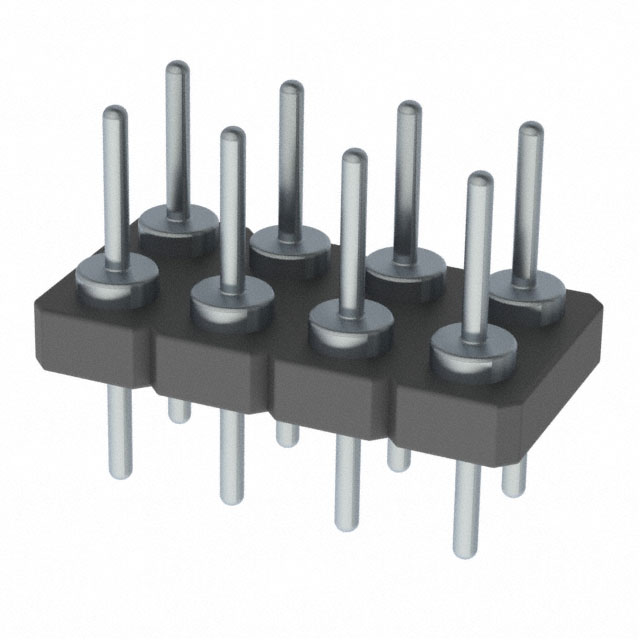

The Mill-Max 435-90-208-00-160000 is a male pin header connector designed for through-hole mounting. It features an 8-position configuration with a 0.100-inch (2.54mm) center-to-center spacing. The unit utilizes gold-plated contacts to ensure reliable signal transmission and corrosion resistance. This component is intended for secure board-to-board or cable-to-board interconnections in electronic assemblies requiring standardized pitch dimensions.

Headers, Male Pins Feature Summary

• Through-hole termination method for robust PCB attachment
• Gold-plated contact surfaces for enhanced conductivity
• Standardized 2.54mm pitch for broad compatibility

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Cable-to-board wiring harnesses
• General-purpose electronic circuit prototyping

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current catalog to confirm exact pin count, header length, and plating specifications. Ensure the selected variant matches the required mechanical height and termination style for the target printed circuit board layout before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54mm pitch male header is required for through-hole assembly. Confirm that the eight-pin configuration aligns with the circuit design requirements. Evaluate the mechanical profile and contact material suitability for the operating environment and mating connector interface constraints.

Headers, Male Pins Part Context

This part belongs to the Mill-Max standard pin header series, which provides versatile interconnect solutions for various electronic applications. The product line emphasizes reliability and ease of integration into manufacturing processes. It serves as a fundamental building block for connecting cables or secondary boards to primary circuitry.

Headers, Male Pins Replacement Considerations

Consult the official Mill-Max catalog for direct substitutes within the same series. Verify that alternative headers maintain identical 2.54mm pitch, eight-position count, and through-hole termination to ensure mechanical and electrical compatibility without redesigning the footprint.
