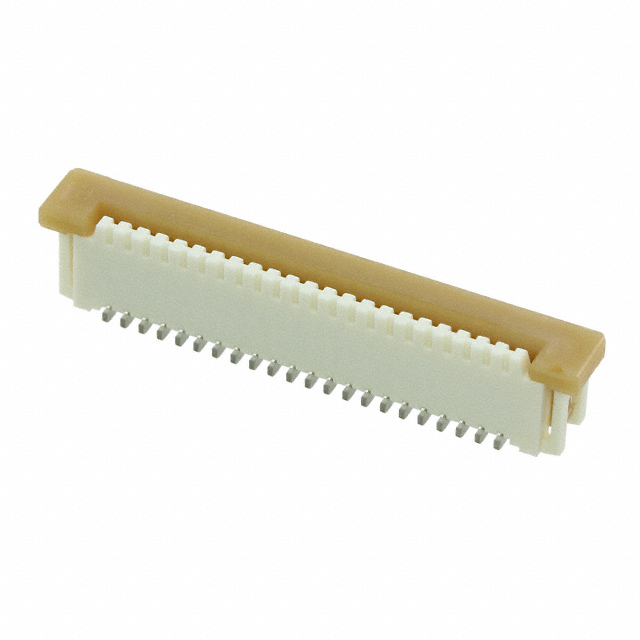

FFC, FPC (Flat Flexible) Connector Assemblies 526102233 product image

526102233

$3.07
  • Description：CONN FPC VERT 22POS 1MM SMD
  • Series：Easy-On 52610
  • Mfr：Molex
  • Package：Tape & Reel (TR),Cut Tape (CT)

SKU:6bb624a5ef7e Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

526102233 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FPC VERT 22POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 526102233

  • Description：CONN FPC VERT 22POS 1MM SMD
  • Series：Easy-On 52610
  • Mfr：Molex
  • Package：Tape & Reel (TR),Cut Tape (CT)
  • Flat Flex Type：FPC
  • Mounting Type：Surface Mount
  • Connector/Contact Type：Contacts, Vertical - 1 Sided
  • Number of Positions：22
  • Pitch：0.039" (1.00mm)
  • Termination：Solder
  • FFC, FCB Thickness：0.30mm
  • Height Above Board：0.226" (5.74mm)
  • Locking Feature：Slide Lock
  • Cable End Type：Tapered
  • Contact Material：Phosphor Bronze
  • Contact Finish：Tin Bismuth
  • Housing Material：Polyamide (PA), Nylon, Glass Filled
  • Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
  • Features：Zero Insertion Force (ZIF)
  • Voltage Rating：125V
  • Operating Temperature：-40°C ~ 85°C
  • Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 526102233

526102233
