842-036-523-212

Edgeboard Connectors Overview

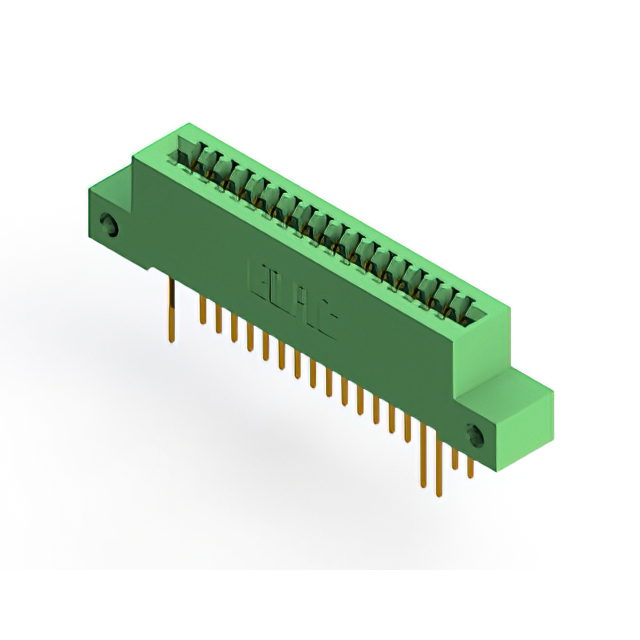

The EDAC Inc. 842-036-523-212 is a standard card edge connector receptacle featuring 36 positions with a 2.54 mm pitch. Designed for through-hole mounting at a right angle, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The component supports a maximum operating temperature of +125°C and offers an insulation resistance of 5 GOhms, ensuring reliable performance in high-temperature environments.

Edgeboard Connectors Feature Summary

• High-temperature capability up to +125°C
• Gold-plated contacts for enhanced conductivity
• Right-angle through-hole mounting configuration

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact contact spacing, row configuration, and termination style. Ensure compatibility with target PCB thickness and mating card dimensions before procurement. Cross-reference manufacturer datasheets for precise mechanical tolerances and environmental ratings.

Edgeboard Connectors Selection Notes

Select this component when right-angle mounting and high-temperature stability are required. Verify that the 2.54 mm pitch aligns with the design board layout. Confirm that the 36-position count matches the signal requirements. Ensure the through-hole termination method is supported by the manufacturing process.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842 series of standard card edge connectors. It is designed for robust connections in demanding environments. The series offers various position counts and mounting styles to accommodate diverse electronic assembly needs across industrial and specialized sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the specific high-temperature rating or gold plating specifications. Verify mechanical fit and electrical characteristics before considering any substitute components.
