AA2214SYSK

LED Indication - Discrete Overview

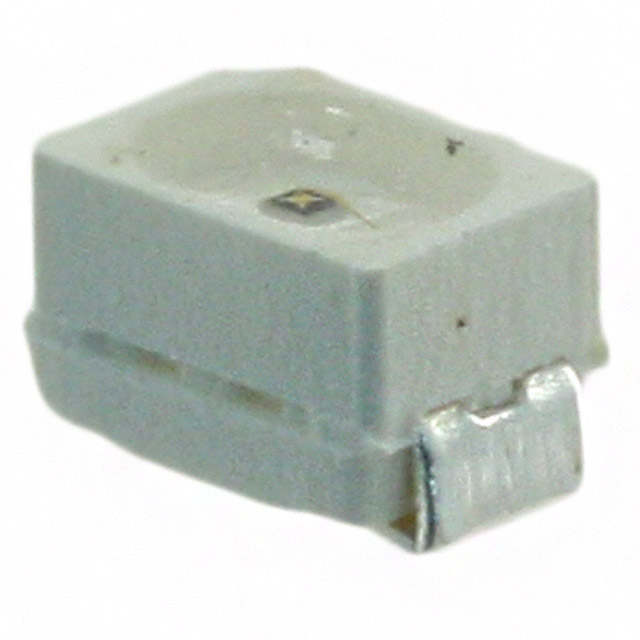

The AA2214SYSK is a single-color yellow surface-mount LED from the Kingbright AA2214 series. It features an oval lens with water-clear transparency and emits light at a peak wavelength of 590 nm. The component operates with a forward current of 20 mA and a forward voltage of 2 V, resulting in a power rating of 75 mW. It provides a luminous intensity of 200 mcd with a viewing angle of 120 degrees. The package dimensions are 2.2 mm in length, 1.4 mm in width, and 1.3 mm in height, suitable for standard SMD/SMT assembly processes.

LED Indication - Discrete Feature Summary

• Yellow emission with 590 nm peak wavelength
• Oval water-clear lens design
• Standard 0805 (2112 metric) surface-mount footprint

LED Indication - Discrete Applications

• Panel status indicators
• Instrumentation displays
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Kingbright documentation to confirm exact optical characteristics such as luminous intensity binning and wavelength tolerance. Ensure that the ordering code matches the required packaging format, such as cut tape or reel, as specified by the manufacturer's current product specifications.

LED Indication - Discrete Selection Notes

Select this component when a compact yellow indicator is required for space-constrained designs. The 0805 package offers a balance between visibility and board real estate. Confirm that the 20 mA forward current requirement aligns with the system's power budget and drive circuitry capabilities before finalizing the design.

LED Indication - Discrete Part Context

This part belongs to the AA2214 series of single-color LEDs manufactured by Kingbright. The series utilizes standard surface-mount technology packages designed for automated assembly. The AA2214SYSK specifically denotes the yellow variant within this family, sharing common mechanical dimensions with other color options in the same series.

LED Indication - Discrete Replacement Considerations

Consult official Kingbright substitution guides for verified equivalents. Cross-reference mechanical footprints and electrical parameters such as forward voltage and peak wavelength to ensure functional compatibility without modifying the existing PCB layout.
