ALD2701SBL

Overview

The ALD2701SBL is a dual monolithic CMOS micropower operational amplifier manufactured by Advanced Linear Devices, Inc. It features rail-to-rail input and output voltage ranges, allowing operation with signals equal to the supply rails. The device operates on single supplies from +2V to +10V or dual supplies from ±1V to ±5V. Key electrical characteristics include a unity gain bandwidth of 0.7MHz, a slew rate of 0.7V/µs, and an extremely low typical input bias current of 1.0pA. It offers high open-loop voltage gain and is designed for low power dissipation.

Feature Summary

• Rail-to-rail input and output voltage capability
• Extremely low input bias current of 1.0pA
• Unity gain stable with high voltage gain
• Micropower operation suitable for battery systems

Applications

• Photodiode amplifiers
• Picoammeters
• High impedance sensor interfaces
• Low leakage signal conditioning circuits

Procurement Notes

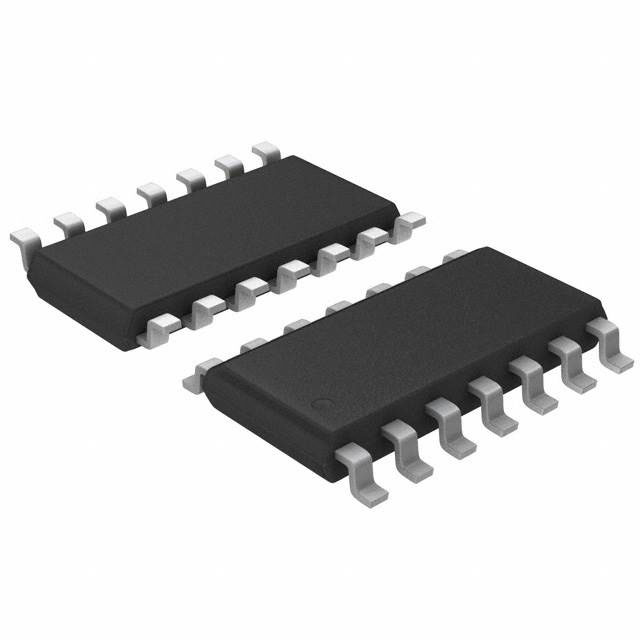

Verify that the 'S' suffix corresponds to the Small Outline Plastic Dip (SOIC) package variant as listed in the manufacturer's ordering information. Confirm lead-free (RoHS) compliance associated with the 'L' suffix. Ensure the specific grade (A or B) matches the required offset voltage specifications before procurement.

Selection Notes

Select this component for applications requiring low power consumption and high input impedance. The rail-to-rail feature makes it suitable for low voltage single-supply designs. Consider the SOIC package format if surface mount technology is required. Verify thermal performance requirements against the specified operating temperature range.

Part Context

This part belongs to the ALD2701 family of dual micro-power operational amplifiers. It utilizes Advanced Linear Devices' enhanced ACMOS silicon gate process. The device is pin-compatible with industry standard µA741 and ICL7621 types, facilitating direct replacement in existing designs while offering improved low-voltage performance.

Replacement Considerations

The datasheet indicates compatibility with µA741 and ICL7621 pin configurations. No specific substitute part numbers are documented in the provided source material.
