AOC2403

$0.43

Description：MOSFET P-CH 20V 1.8A 4ALPHADFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:48fe0ca86525 Category: Single FETs, MOSFETs Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET P-CH 20V 1.8A 4ALPHADFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：20 V
Current - Continuous Drain (Id) @ 25°C：1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：1.5V, 4.5V
Rds On (Max) @ Id, Vgs：95mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id：1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：4.8 nC @ 4.5 V
Vgs (Max)：±8V
Input Capacitance (Ciss) (Max) @ Vds：405 pF @ 10 V
FET Feature：-
Power Dissipation (Max)：450mW (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：4-AlphaDFN (0.97x0.97)
Package / Case：4-SMD, No Lead

Download product information

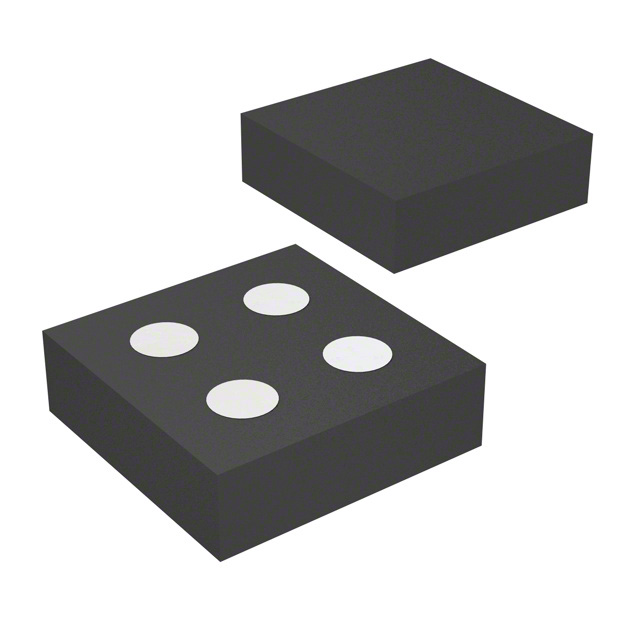

AOC2403

Overview

The AOC2403 is a 20V P-Channel MOSFET utilizing advanced trench technology. It features a drain-source voltage (BVDSS) of -20V and a continuous source current (ID) of -1.8A at VGS=-4.5V. The on-resistance (RDS(ON)) is less than 95mΩ at VGS=-4.5V, rising to less than 200mΩ at VGS=-1.5V. Key dynamic parameters include a total gate charge (Qg) of 4.8nC and a forward transconductance (gFS) of 7S. The device operates within a junction temperature range of -55°C to 150°C.

Feature Summary

Advanced trench technology provides excellent on-resistance and low gate charge.
Capable of operation with gate voltages as low as 1.5V.
Retains an 8V maximum gate-source voltage rating.

Applications

Procurement Notes

Verify the specific package type AlphaDFN 0.97x0.97_4 against your PCB footprint requirements. Confirm that the component's qualification for the consumer market aligns with your project's intended use case. Ensure that any application does not involve life support devices or systems, as such uses are explicitly unauthorized by the manufacturer.

Selection Notes

Select this component for low-voltage switching applications requiring efficient performance at reduced gate drive voltages. The low gate charge supports high-frequency operation, while the specified on-resistance values indicate suitability for moderate current loads up to 1.8A. Evaluate thermal management needs based on the provided transient thermal impedance data.

Part Context

This part belongs to the P-Channel MOSFET category from Alpha & Omega Semiconductor Inc. It is designed using trench technology to optimize conduction losses and switching speeds. The device is marketed primarily for consumer electronics applications, offering a compact solution for power management tasks in portable and space-constrained devices.
