Product Detailed Parameters
- Description：MOSFET N/P-CH 40V 8A TO252-5
- Series：-
- Mfr：Alpha & Omega Semiconductor Inc.
- Package：Tape & Reel (TR)
- Technology：MOSFET (Metal Oxide)
- Configuration：N and P-Channel
- FET Feature：Logic Level Gate
- Drain to Source Voltage (Vdss)：40V
- Current - Continuous Drain (Id) @ 25°C：8A
- Rds On (Max) @ Id, Vgs：33mOhm @ 8A, 10V
- Vgs(th) (Max) @ Id：3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：9.2nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds：404pF @ 20V
- Power - Max：1.6W, 1.7W
- Operating Temperature：-55°C ~ 175°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：TO-252-6, DPAK (5 Leads + Tab)
- Supplier Device Package：TO-252-5
- Grade：-
- Qualification：-
Download product information
Overview

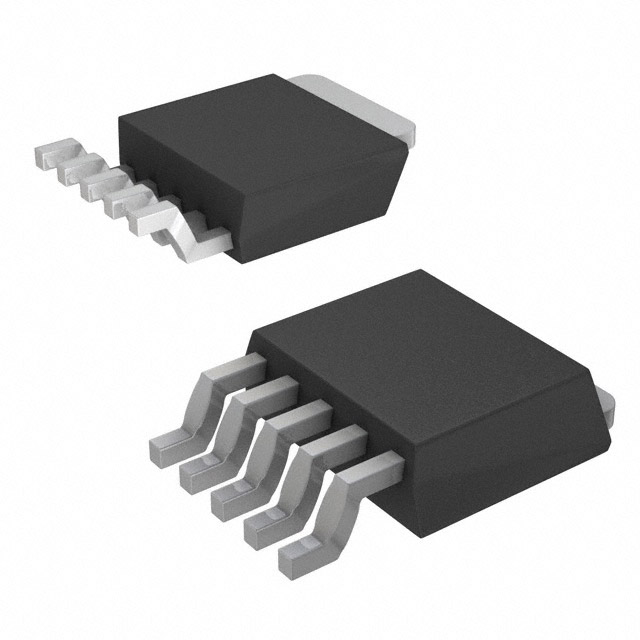

The AOD604 is a complementary enhancement mode field effect transistor manufactured by Alpha & Omega Semiconductor Inc. It integrates an n-channel and a p-channel MOSFET within a single TO-252-5L package. The n-channel device provides a drain-source voltage of 40V, a continuous drain current of 8A at 25°C case temperature, and a maximum on-resistance of 33mΩ at VGS=10V. The p-channel counterpart offers a -40V breakdown voltage, an -8A continuous current rating, and a maximum on-resistance of 50mΩ at VGS=-10V. Both transistors are rated for a junction temperature up to 175°C.
Feature Summary
- Complementary n-channel and p-channel configuration in a single package
- Advanced trench technology for low on-resistance and gate charge
- Validated for 100% unclamped inductive switching (UIS) testing
Applications
- H-bridge circuits
- Inverters
- Low voltage motor control applications
Procurement Notes
Verify the specific revision status and manufacturing origin before procurement. Confirm that the component meets RoHS compliance standards if required by the design specifications. Ensure the ordering suffix matches the desired packaging format. Check for any recent product change notices regarding assembly or material composition updates.
Selection Notes
Select this component for designs requiring matched complementary pairs in space-constrained environments. Evaluate thermal management requirements based on the specified junction-to-case resistance values. Ensure gate drive voltages remain within the ±20V absolute maximum ratings to prevent dielectric breakdown during operation.
Part Context
This part belongs to the AOD series of complementary MOSFETs from Alpha & Omega Semiconductor. It utilizes TO-252-5L surface mount packaging to provide a compact solution for power switching applications. The device is designed primarily for consumer market applications rather than critical life support systems.
Replacement Considerations
Direct replacements must match the 40V/8A complementary specification and TO-252-5L footprint. Verify pinout compatibility between Drain-Drain and Source-Source configurations. Ensure equivalent thermal resistance and UIS capability if used in inductive load switching scenarios.
